SENSOR FOR SCRAPED SURFACES
SENSOR FOR SCRAPED SURFACES
SENSOR FOR SCRAPED SURFACES

SENSOR FOR SCRAPED SURFACES

  • Mã sản phẩm:

    O019001A

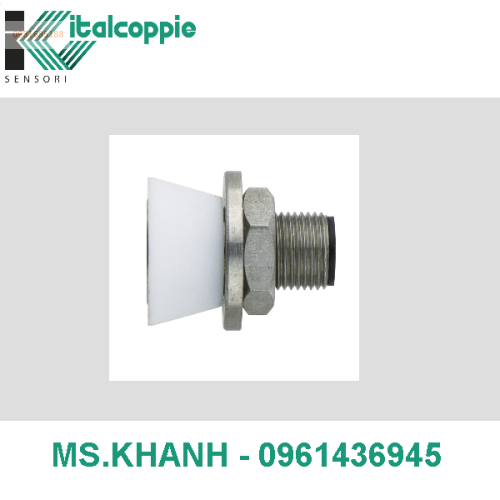

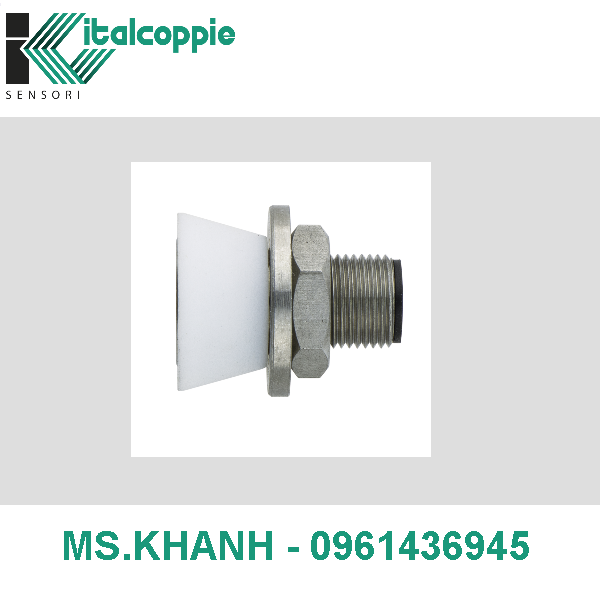

    • TEMPERATURE PROBE FOR INSTALLATION ON SCRAPED SURFACES WHERE NO PROJECTING PARTS ARE POSSIBLE

    The special construction allow an optimal temperature measurement on an heated surface and on a scraped surface where no projecting parts are possible.

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    single 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Sensing part maximum working temperature

    130°C

    Sheet material

    AISI 316

    Support material

    PTFE

    Sensing part connection

    connector

    Type of connector

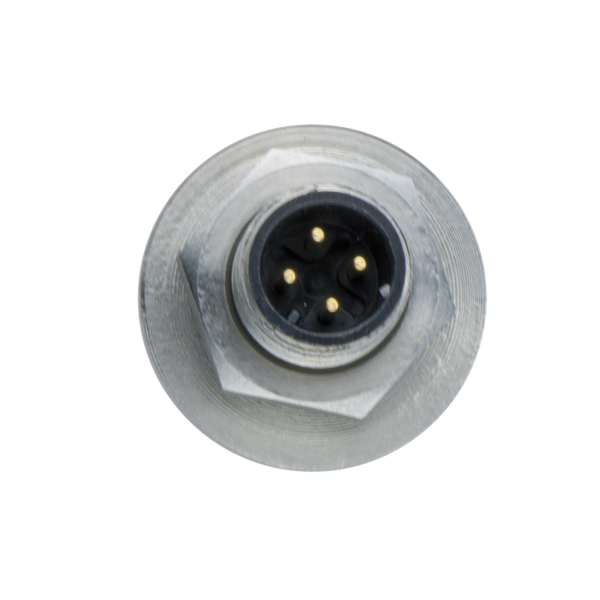

    male 4-pin connector with M12x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

    Connection body material

    AISI 316

    Maximum connector temperature

    90°C

    Fixing system

    through-wall connection

    wall thickness (S)
    12 ÷15 mm

    Giá:

    Liên hệ
