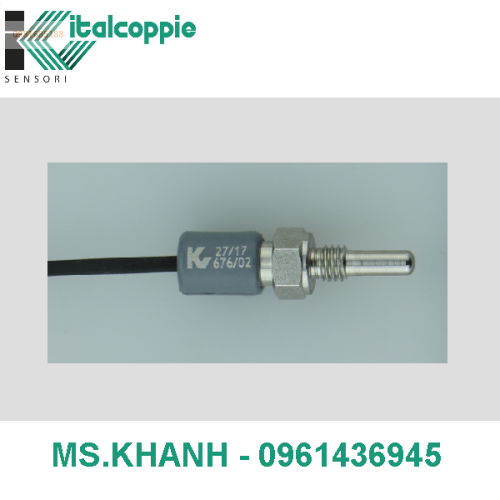

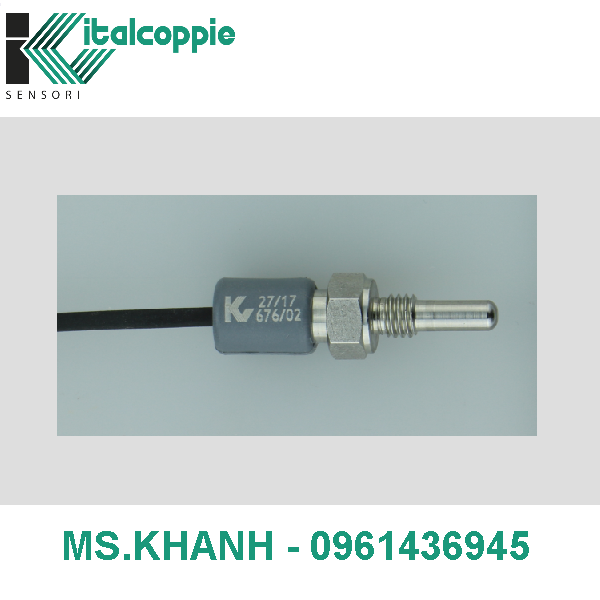

COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE
COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE

COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE

  • Mã sản phẩm:

    C091038A

    • Compact NTC 3.3K probe with integrated cable

    -NTC 3300 Ohm ± 2.5% @ 100°C ß = (0/100) 3970
    -Thermowell AISI 316L with threaded connection M6x1
    -Unipolar cables and UL heat-shrinking sheath coating
    -Connector termination Molex Mini-FIT 39-01-3023

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(100°C)=3.3Kohm ±2.5%, beta(0/100)=3970

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Sensing element operating temperature range
    -50 ÷150°C
    Sensing part maximum working temperature

    175°C

    Sheet material

    AISI 316L

    BAR STOCK THERMOWELL WITH THREADED CONNECTION M6x1
    Product type

    accessory

    Accessory type

    thermowell

    Thermowell construction

    monolithic

    Thermowell rod shape

    cylindrical

    Thermowell rod diameter

    Ø 4 mm

    Internal thermowell stem diameter

    Ø 2,9 mm

    Giá:

    Liên hệ

  • Lượt xem:

    2914
