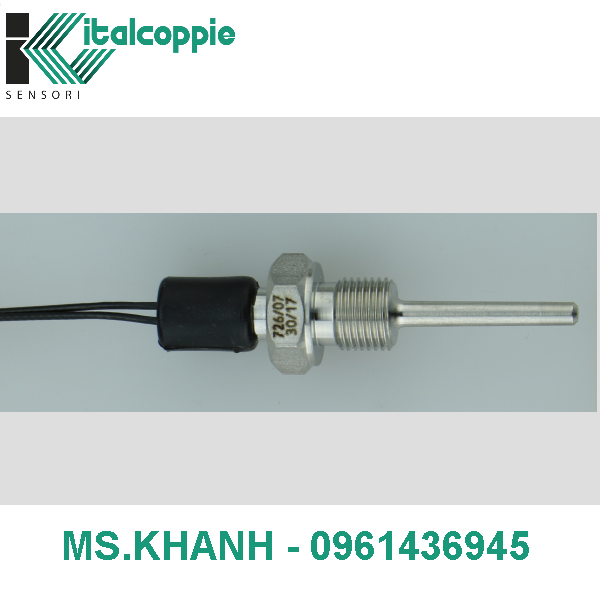

NTC PROBE 3.3K COMPACT 1/8 G WITH INTEGRATED CABLE
NTC PROBE 3.3K COMPACT 1/8 G WITH INTEGRATED CABLE

NTC PROBE 3.3K COMPACT 1/8 G WITH INTEGRATED CABLE

  • Mã sản phẩm:

    P084001A

    • NTC probe 3.3K COMPACT with integrated cable

    -sensing element NTC 3300 Ohm ± 2,5% @ 100°C ß=(0/100) 3970
    -AISI 316L thermowell with threading 1/8 G
    -unipolar cables with polyester insulation (high temp)
    – AMP MODU II connector

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(100°C)=3.3Kohm ±2.5%, beta(0/100)=3970

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Sensing part maximum working temperature

    150°C

    Insulation resistance
    100 M ?@ 100 Vdc.
    Sheet material

    AISI 316L

    Sheet diameter d=

    Ø 3,5 tapered conic to Ø 3 mm

    Immersion I=

    24 mm

    Sensing part connection

    cable

    EXTENSION CABLE
    Working temperature
    -50 ÷175°C (500h @185°C)
    Cable conductors

    copper tinned

    Number of cable conductors

    unipolar

    Conductor dimension

  • Giá:

    Liên hệ

  • Lượt xem:

    2445
