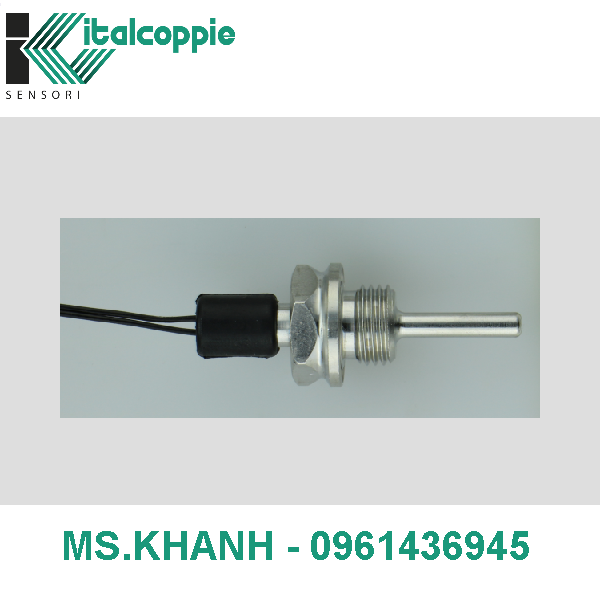

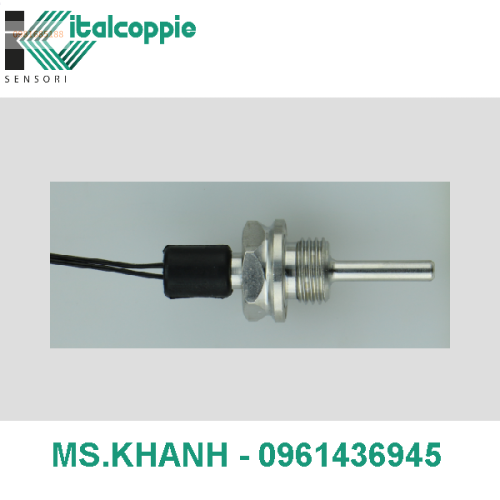

COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE (ENDING AMP MODU II)
COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE (ENDING AMP MODU II)

COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE (ENDING AMP MODU II)

  • Mã sản phẩm:

    C115011A

    • Compact probe NTC 3.3K with integrated cable

    -ntc probe NTC 3300 Ohm ± 2.5% @ 100°C ß=(0/100) 3970
    -AISI 316L with threaded connection 1/4 G (with seat for OR)
    -insulated single-conductor cables in polyester (for high T°)
    -connector ending AMP MODU II M

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(100°C)=3.3Kohm ±2.5%, beta(0/100)=3970

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Sensing element operating temperature range
    -50 ÷150°C
    Sheet diameter d=

    Ø 4 mm

    Immersion I=

    20 mm

    Sheet material

    AISI 316L

    Insulation resistance
    100 M ?@ 100 Vdc.
    Sensing part connection

    cable

    EXTENSION CABLE
    Working temperature
    -50 ÷175°C (500h @185°C)
    Cable conductors

    copper tinned

    Number of cable conductors

    unipolar

    Conductor dimension


    Giá:

    Liên hệ
