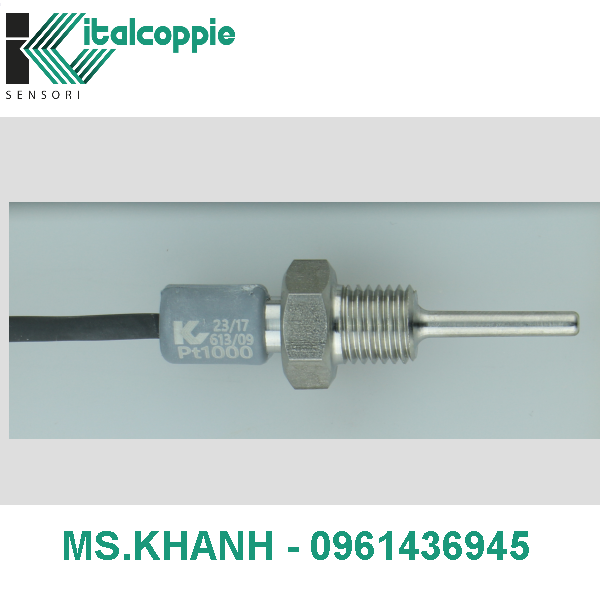

COMPACT PT1000 RTD PROBE WITH M10X1,25 THREADING AND INTEGRATED CABLE
COMPACT PT1000 RTD PROBE WITH M10X1,25 THREADING AND INTEGRATED CABLE

COMPACT PT1000 RTD PROBE WITH M10X1,25 THREADING AND INTEGRATED CABLE

  • Mã sản phẩm:

    E100006A

    • RTD probe with integrated cable

    -RTD probe Pt 1000 in Cl. A
    -Thermowell AISI 316L threaded M10x1,25
    -FEP/SILICONE RUBBER Cable
    -Contact Termination Mate-N-Lock 350561-1 with housing 1-350867-0

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt1000 ? @ 0°C

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Sensing element operating temperature range
    -50 ÷150°C
    Sheet material

    AISI 316L

    TAPERED CONE BAR STOCK THERMOWELL WITH THREADED CONNECTION M10x1,25
    Product type

    accessory

    Accessory type

    thermowell

    Thermowell construction

    monolithic

    Thermowell rod shape

    tapered conic

    Maximum thermowell stem diameter

    Ø 3,5 mm

    Minimum thermowell stem diameter


    Giá:

    Liên hệ

  • Lượt xem:

    3063
