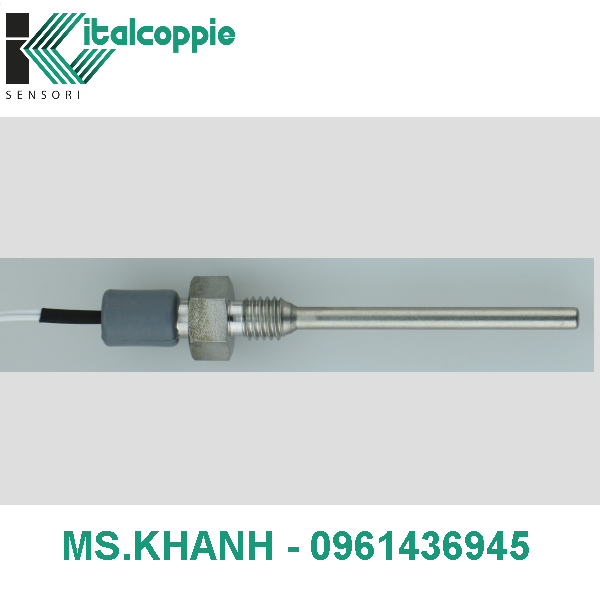

COMPACT 100K NTC PROBE M8X1,25 WITH INTEGRATED CABLE
COMPACT 100K NTC PROBE M8X1,25 WITH INTEGRATED CABLE

COMPACT 100K NTC PROBE M8X1,25 WITH INTEGRATED CABLE

  • Mã sản phẩm:

    H018005A

    • Compact 100K NTC probe with integrated cable

    -probe NTC 100 Kohm ± 2% @ 25 °c ß = (25/85) 4190
    -tube thermowell Ø4 x 52 mm with stainless steel threaded connection M8x1,25
    -2 unipolar FEP insulated wires with heatshrink tube
    -Molex Minifit male connector termination

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(25°C)=100Kohm ±2%, beta(25/85)=4190

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Sensing part maximum working temperature

    125°C

    Sheet material

    AISI 316L

    Process connection (*)
    (*) Thread STANDARDS (CYL. GAS in accordance with UNI-ISO 228) (CON. GAS in accordance with UNI-ISO 7-1) (NPT in accordance with ANSI B 1.20.1)
    M8 x 1,25

    Insulation resistance
    100 M ?@ 100 Vdc.
    Sensing part connection

    cable

    Transition sleeve

    yes

    Transition sleeve type

    MOULDED thermoplastic round sleeve

    Maximum transition temperature

    125°C

    EXTENSION CABLE
    Cable conductors



  • Giá:

    Liên hệ
