Phụ kiện cho đầu dò cao su

  • Mã sản phẩm:

    TWK

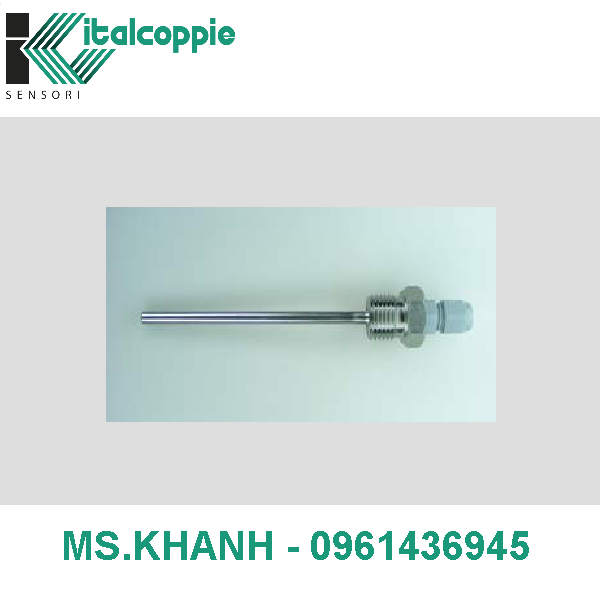

  • Thermowell for thermoplastic rubber probes with sealing cable gland

    -allows to use thermoplastic rubber probes for temperature measurement inside pipings or tanks
    -sealing cable gland probe in plastic material

    TECHNICAL DATA



    Product type

    accessory

    Accessory type

    thermowell

    Thermowell construction

    welded

    Thermowell pipe

    Ø6 x 5.35 mm AISI316L

    Sensor fixing mechanism

    with plastic cable gland PG7

    For probe

    in rubber with bulb Ø 5 mm

    Fixing system

    threaded connection

    Process Connection

    threaded 1/8" GAS CIL. acc. UNI-ISO 228

    threaded 1/8" NPT acc. ANSI B 1.20.1

    threaded 1/4" CYL. GAS acc. UNI-ISO 228

    threaded 1/4" NPT acc. ANSI B 1.20.1

    threaded 3/8" CYL. GAS acc. UNI-ISO 228

    threaded 1/2" CYL. GAS acc. UNI-ISO 228

    threaded 1/2" NPT acc. ANSI B 1.20.1

    Sheet material

    AISI 303

    Immersion I=

    35 mm

    40 mm

    45 mm

    50 mm

    60 mm

    75 mm

    90 mm

    100 mm

    150 mm

    200 mm

    250 mm

    300 mm

    Dimensional notes

    Immersions other than those listed can be produced for minimum quantities to be agreed (after our feasibility study)


    Giá:

    Liên hệ
  • Lượt xem:

    3470
