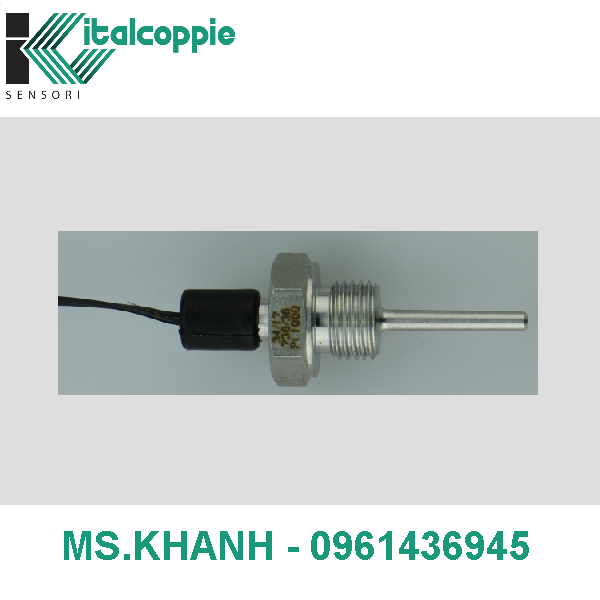

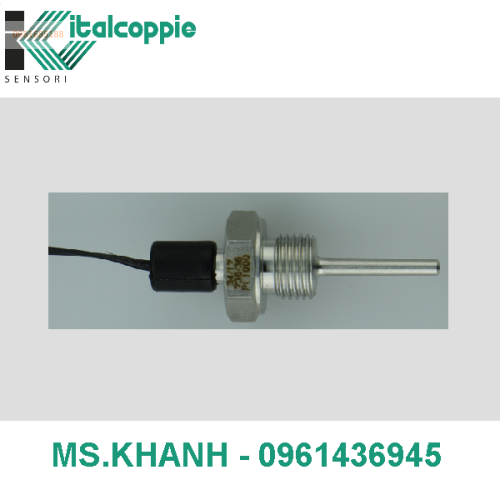

COMPACT PT 1000 PROBE WITH INTEGRATED CABLE AND G 1/4 THREADING
COMPACT PT 1000 PROBE WITH INTEGRATED CABLE AND G 1/4 THREADING

COMPACT PT 1000 PROBE WITH INTEGRATED CABLE AND G 1/4 THREADING

  • Mã sản phẩm:

    F062006B

    • Compact RTD probe with integrated cable

    -Single element Pt1000 Cl. B
    -AISI 316L thermowell with threaded connection 1/4 G, immersion 24 mm
    -Single wires AWG24 insulated in polyester for high temperature
    -Molex Mini-FIT male connector 39013023

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. B

    Sensing element operating temperature range
    -50 ÷150°C
    Sheet diameter d=

    Ø 3,5 tapered conic to Ø 3 mm

    Response time (*)
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step
    < 3,5 seconds

    Sheet material

    AISI 316L

    POZZETTO TERMOMETRICO DA BARRA RASTREMATO CONICO CON ATTACCO FILETTATO G 1/4 M
    Product type

    accessory

    Accessory type

    thermowell

    Thermowell construction

    monolithic

    Thermowell rod shape


    Giá:

    Liên hệ
