NTC 3.3K COMPACT PROBE 1/8 G WITH INTEGRATED CABLE
NTC 3.3K COMPACT PROBE 1/8 G WITH INTEGRATED CABLE

NTC 3.3K COMPACT PROBE 1/8 G WITH INTEGRATED CABLE

  • Mã sản phẩm:

    N040002A

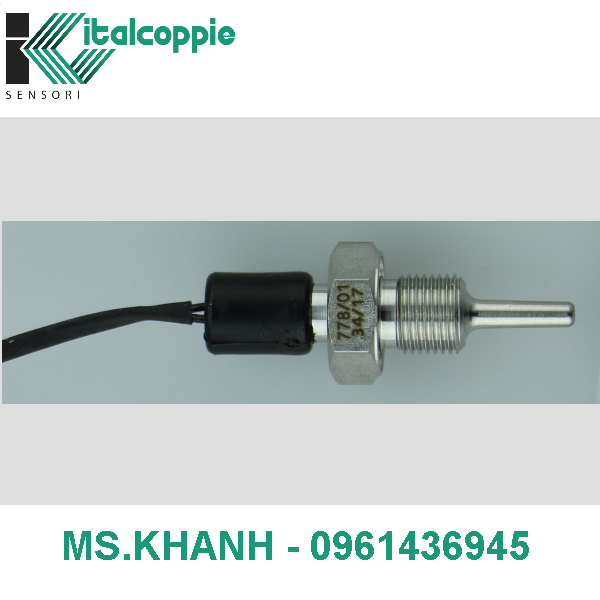

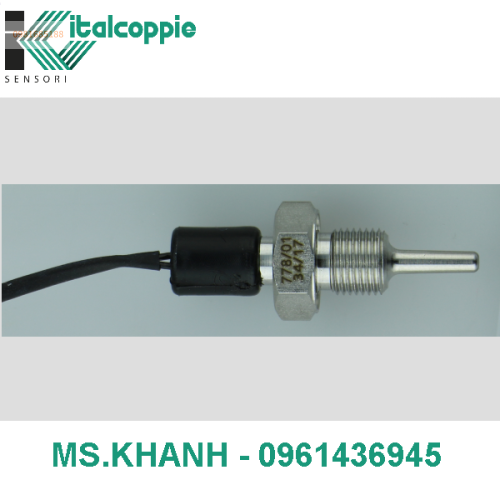

    • NTC 3.3K compact probe with integrated cable

    – NTC 3300 OHM ± 2.5% @ 100 ° C ß = (0/100) 3970
    -Thermowell AISI 316L with threaded connection 1/8 G and sealing ring underneath the hex.
    -Copolyester TPC Insulated cables (high T°) coated with heat-shrink sheath
    -AMP MODU II connector termination

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(100°C)=3.3Kohm ±2.5%, beta(0/100)=3970

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Sensing element operating temperature range
    -50 ÷150°C
    Sheet material

    AISI 316L

    CONE TAPERED BAR STOCK THERMOWELL WITH THREADED CONNECTION G 1/8 M (place for OR under allen wrench)
    Product type

    accessory

    Accessory type

    thermowell

    Thermowell construction

    monolithic

    Thermowell rod shape

    tapered conic

    Maximum thermowell stem diameter

    Ø 3,5 mm

    Minimum thermowell stem diameter

    Ø 3 mm

    Internal thermowell stem diameter


    Giá:

    Liên hệ

  • Lượt xem:

    2711
