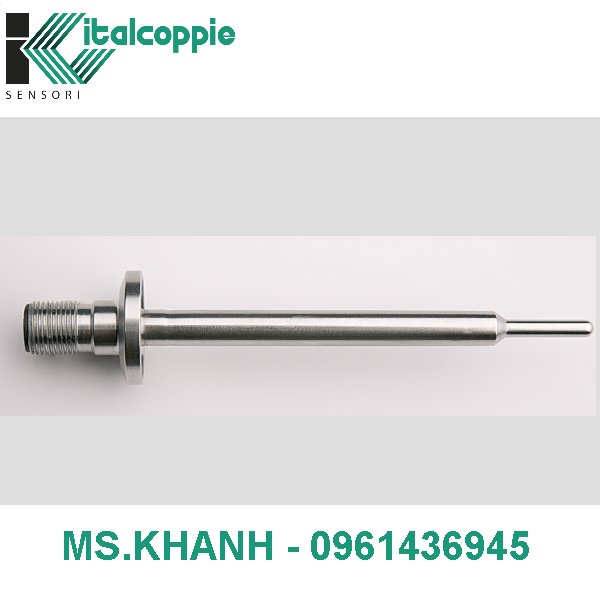

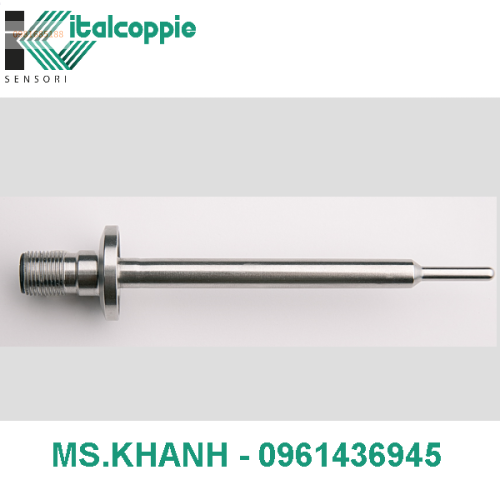

RTD WITH 3/4″ CLAMP CONNECTION
RTD WITH 3/4″ CLAMP CONNECTION

RTD WITH 3/4″ CLAMP CONNECTION

  • Mã sản phẩm:

    TRCA1

    • Specifically for food, chemical, and pharmaceutical industry application

    – IP 67 connector with screwed plug
    3/4″ clamp connection
    – Higyenic, easy to clean, easy to disassemble
    – fully made in AISI 316 suitable for chemically aggressive processes

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Sensing element

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Working temperature
    -50 ÷150°C
    Sheet diameter d=

    Ø 8 mm tapered to Ø 4 x 20 mm

    Response time (*)
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step
    < 5 seconds

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    35 mm

    100 mm

    Surface finish

    polished with roughness below Ra=0.8 µm

    Sensing part connection

    connector

    Type of connector


    Giá:

    Liên hệ

  • Lượt xem:

    3069
