PT 1000 RTD NEEDLE PROBE (FOR VACUUM COOKING)
PT 1000 RTD NEEDLE PROBE (FOR VACUUM COOKING)

PT 1000 RTD NEEDLE PROBE (FOR VACUUM COOKING)

  • Mã sản phẩm:

    O020006A

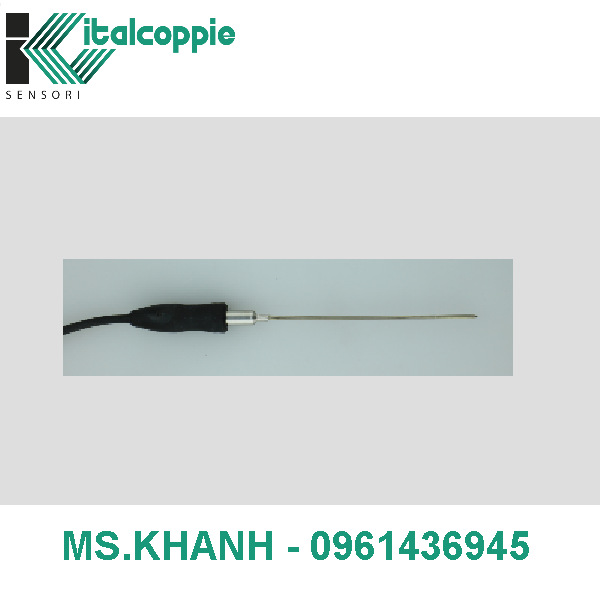

    • Resistance thermometer made in compact mineral insulated cable (M.I.C.), tapered needle Ø1.5, with overmolded handle in thermoplastic rubber

    -Needle execution in AISI316 from cable M.I.C. Ø2
    tapered Ø1.5 x80mm
    -The tapered tip (through hammering process) increases the response speed while maintaining a good strength
    -Handle Ø 12 x 39 mm in black thermoplastic rubber (TPE)
    -2-wire cable in TPE
    -3,5mm axial bipolar JACK overmoulded connector termination

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Output signal type

    thermoresistance

    Removable insert

    no

    Sensing element

    Pt1000 ? @ 0°C

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Sensing element operating temperature range
    -40 ÷105°C
    Sheet diameter d=

    Ø2 reduced to Ø1.5

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    80 mm

    Sensing part connection

    cable

    Transition sleeve

    yes

    Handle material

    food approved TPE thermoplastic rubber

    Fixing system

    bare stem

    Extension cable


    Giá:

    Liên hệ
