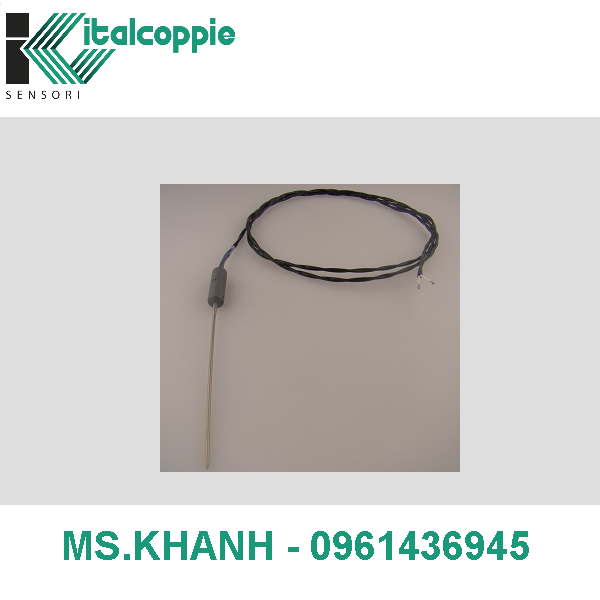

NEEDLE RTD Ø1,5 (FOR VACUUM COOKING)
NEEDLE RTD Ø1,5 (FOR VACUUM COOKING)
NEEDLE RTD Ø1,5 (FOR VACUUM COOKING)

NEEDLE RTD Ø1,5 (FOR VACUUM COOKING)

  • Mã sản phẩm:

    D048002A

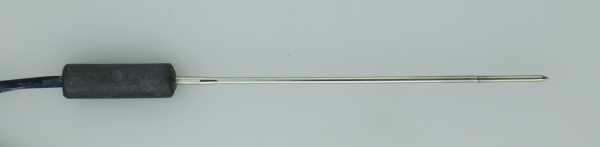

    • Rtd probe manifactured in compact mineral insulation cable (M.I.C.), tapered needle Ø1.5, with overmoulded transition handle

    -Rtd probe Pt100 Cl.B
    -Needle version in AISI316 from cable M.I.C. Ø2 tapered Ø1.5 x75mm
    – the tapered tip (through hammering process) increases response speed keeping a good strength
    -Plastic overmoulded transition for high temperature

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. B

    Sensing element operating temperature range
    -30 ÷260°C (280°C for short times)
    Sheet diameter d=

    Ø2 reduced to Ø1.5

    M.I.C. min. bending radius

    3 times the outer diameter (except the sensing tip which length is ~30 mm)

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    75 mm

    Sensing part connection

    cable

    Transition sleeve

    yes

    Transition sleeve type


    Giá:

    Liên hệ
