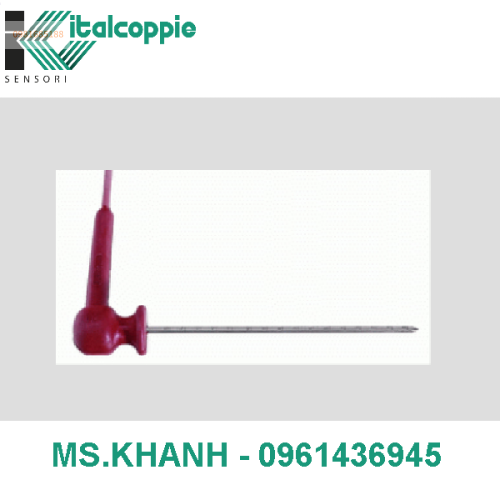

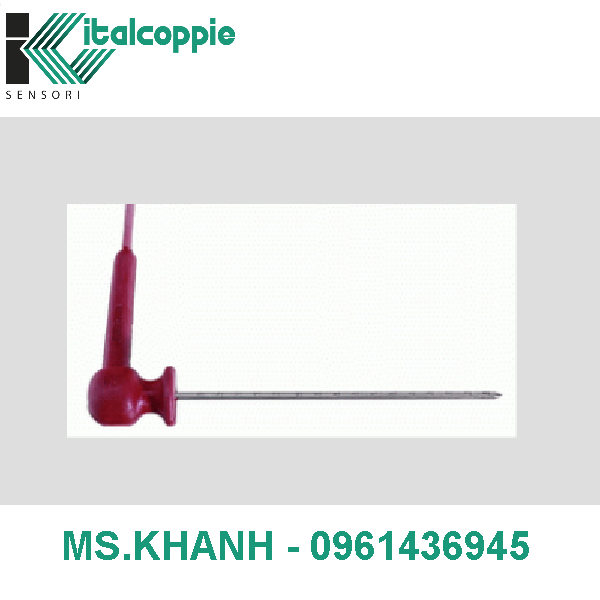

CORE RESISTANCE TEMPERATURE DETECTOR WITH ERGONOMIC HANDLE IN FOOD SILICONE
CORE RESISTANCE TEMPERATURE DETECTOR WITH ERGONOMIC HANDLE IN FOOD SILICONE

CORE RESISTANCE TEMPERATURE DETECTOR WITH ERGONOMIC HANDLE IN FOOD SILICONE

  • Mã sản phẩm:

    TRPSIL

    • Airtight rtd with vulcanized silicone rubber handle for food usage

    – graduated needle suitable to position the sensor at the desired depth inside the product
    – silicone rubber humidity-proof handle
    – resistant up to 180°C allowing to keep the sensor inside the product during cooking time

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Sensing element operating temperature range
    -50 ÷180°C
    Sheet diameter d=

    Ø 4 mm

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    120 mm

    L= 165 mm

    170 mm

    240 mm

    Sensing part connection

    cable

    Transition sleeve

    yes


    Giá:

    Liên hệ
