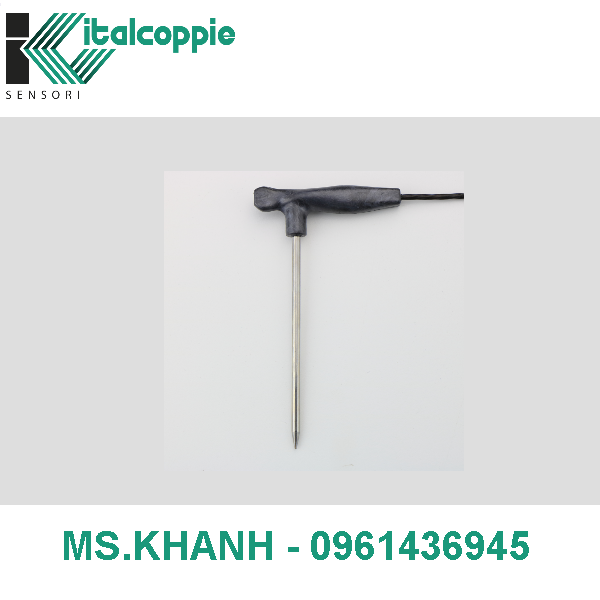

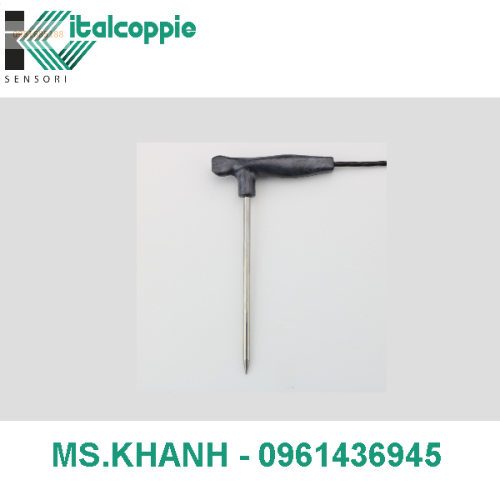

PROBE WITH ELBOW HANDLE FOR PROFESSIONAL OVENS
PROBE WITH ELBOW HANDLE FOR PROFESSIONAL OVENS

PROBE WITH ELBOW HANDLE FOR PROFESSIONAL OVENS

  • Mã sản phẩm:

    TRPF90

    • Core probe for professional, single or multipoint ovens (up to 5 measuring points)

    -Overmoulded plastic elbow handle for high temperature (suitable for food use, FDA approved)
    -T Max for short periods: 300°C
    -Watertight Construction: IP67
    -Stem Ø 4 mm in AISI316 with needle tip and variable lengths

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Sensing element


    Pt100 ? @ 0°C
    Sensing Element configuration single 4-wire
    Pt1000 ? @ 0°C
    Sensing Element configuration single 2-wire
    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Sensing element operating temperature range
    -50 ÷260°C (300°C for short periods)
    Sheet diameter d=

    Ø 4 mm

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    100 mm

    Sensing part connection

    cable

    Handle material

    polymers suitable for contact with foods

    Handle shape

    elbow

    Fixing system

    bare stem

  • Giá:

    Liên hệ
