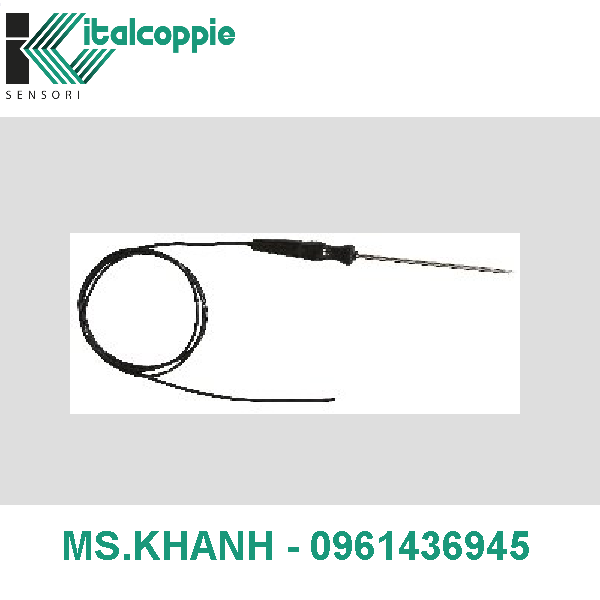

PROBE FOR PROFESSIONAL OVENS WITH STRAIGHT HANDLE
PROBE FOR PROFESSIONAL OVENS WITH STRAIGHT HANDLE

PROBE FOR PROFESSIONAL OVENS WITH STRAIGHT HANDLE

  • Mã sản phẩm:

    TRPF

    • Needle Probe for professional ovens, single or multipoint (up to 5 measurement points)

    -straight overmoulded plastic handle for high temperature (suitable for food usage, FDA approved)
    -max T. for short time : 300°C
    -airtight performance: IP67
    -stem Ø 4 mm in AISI 316 with needle tip and different lengths

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element


    Pt100 ? @ 0°C
    Sensing Element configuration single 4-wire
    Pt1000 ? @ 0°C
    Sensing Element configuration single 2-wire
    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Sensing element operating temperature range
    -50 ÷260°C (300°C for short periods)
    Sheet diameter d=

    Ø 4 mm

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    100 mm

    Sensing part connection

    cable

    Transition sleeve

    yes

    Handle material

    polymers suitable for contact with foods

    Handle shape


    Giá:

    Liên hệ
