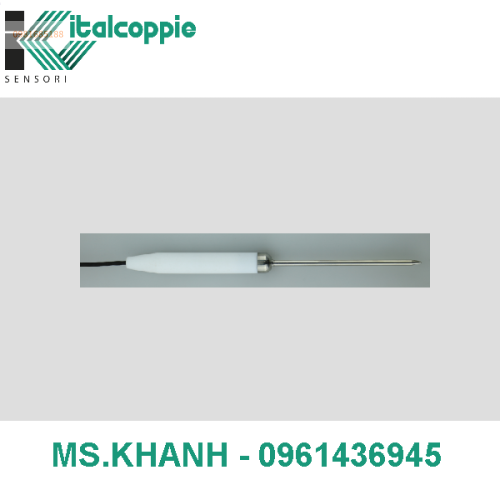

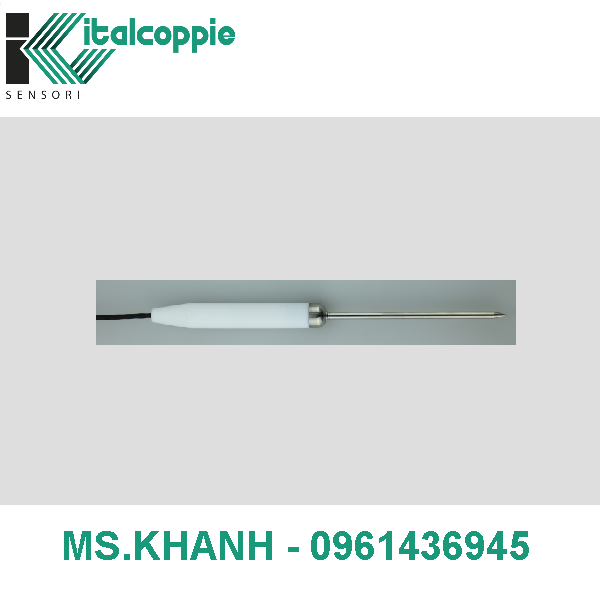

NEEDLE PROBE FOR PROFESSIONAL OVENS WITH PTFE HANDLE
NEEDLE PROBE FOR PROFESSIONAL OVENS WITH PTFE HANDLE

NEEDLE PROBE FOR PROFESSIONAL OVENS WITH PTFE HANDLE

  • Mã sản phẩm:

    TRPF-PTFE

    • Single element or multipoint (up to 5 measurement points)

    – right handle in PTFE (WHITE) assembled
    – T max for short periods: 300°C
    – protection degree: IP65
    – stem Ø 4 mm in AISI 316 with needle tip and different lenghts

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element


    Pt100 ? @ 0°C
    Sensing Element configuration single 4-wire
    Pt1000 ? @ 0°C
    Sensing Element configuration single 2-wire
    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Sensing element operating temperature range
    -50 ÷260°C (300°C for short periods)
    Sheet diameter d=

    Ø 4 mm

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Sensing part connection

    cable

    Handle material

    PTFE

    Handle shape

    straight

    Fixing system

    bare stem

  • Giá:

    Liên hệ
