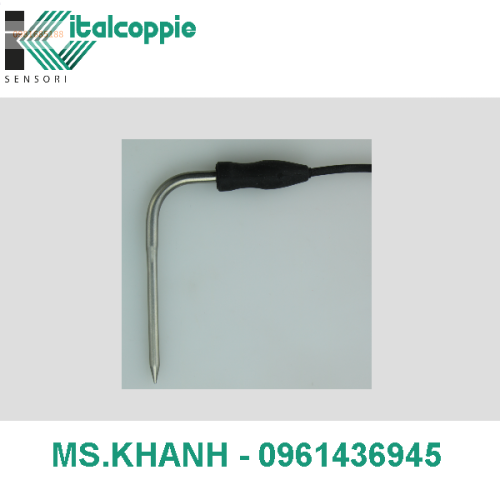

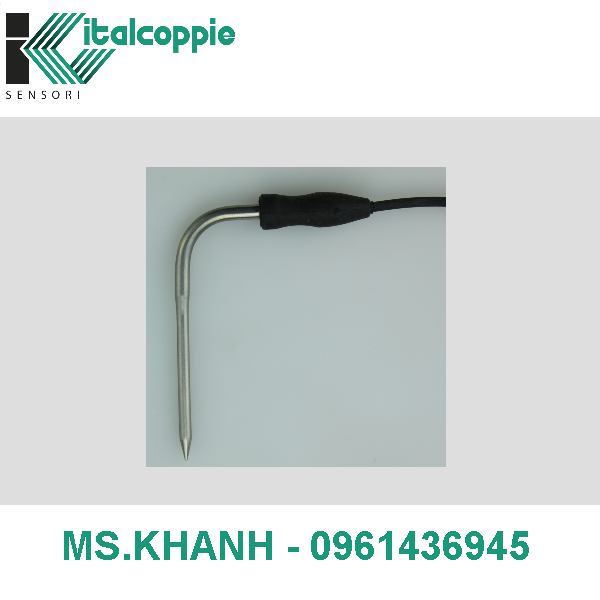

NEEDLE PROBE FOR BLAST CHILLERS WITH ELBOW TAPERED HANDLE (NEEDLE MEASUREMENT POINTS)
NEEDLE PROBE FOR BLAST CHILLERS WITH ELBOW TAPERED HANDLE (NEEDLE MEASUREMENT POINTS)

NEEDLE PROBE FOR BLAST CHILLERS WITH ELBOW TAPERED HANDLE (NEEDLE MEASUREMENT POINTS)

  • Mã sản phẩm:

    C131005A

    • Needle probe for refrigeration process. The thermoplastic food rubber construction gives to the product an high degree of environmental protection with a time stability. The ntc probe has a needle tip (tapered at Ø 4 mm), so that it makes easier penetration in needle product with high response speed.

    -ntc probe KTY (980÷1000 ohm) or NTC R(25°C)=10KOhm ±1%, ß(25/85)=3435
    -stem Ø5 with elbow at 90°
    -tapered sensing part Ø4 x 50mm AISI 316 with needle tip
    -thermoplastic rubber handle TPE suitable for food usage
    – M12 socket 4 pins

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Output signal type

    thermistor

    Removable insert

    no

    Sensing element

    NTC R(25°C)=10Kohm ±1%, beta(25/85)=3435

    Sensing element operating temperature range
    -50 ÷100°C
    Sheet diameter d=

    Ø 5

    Taper diameter

    tapered Ø 4 mm

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    50 mm

    65 mm

    Sensing part connection

    cable

    Transition sleeve

    yes

    Handle material

    food approved TPE thermoplastic rubber

    Fixing system

    bare stem

    Extension cable

    Giá:

    Liên hệ
