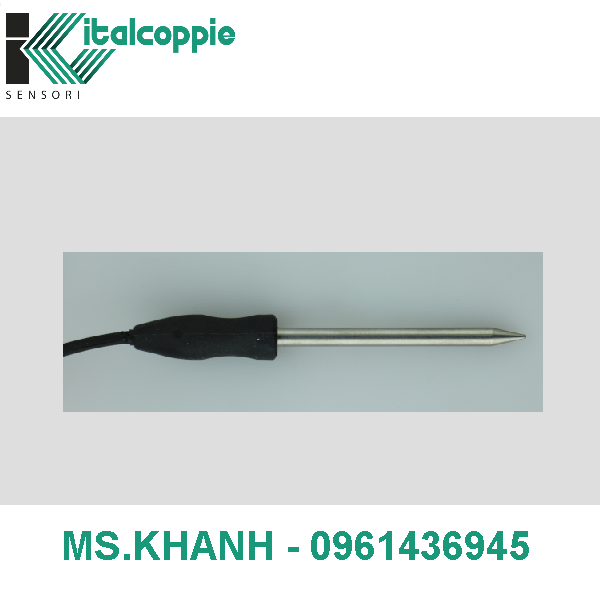

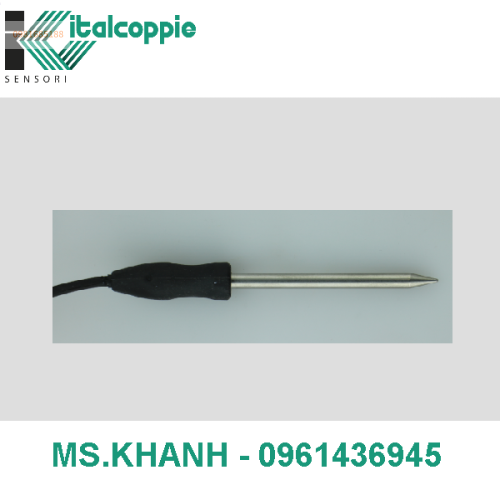

NEEDLE PROBE KTY FOR BLAST CHILLERS (NEEDLE MEASUREMENT POINTS)
NEEDLE PROBE KTY FOR BLAST CHILLERS (NEEDLE MEASUREMENT POINTS)

NEEDLE PROBE KTY FOR BLAST CHILLERS (NEEDLE MEASUREMENT POINTS)

  • Mã sản phẩm:

    C131003A

    • Probe with needle measurement points for refrigeration processes. The alimentary thermoplastic rubber construction confers a high degree of environmental protection stable over time. The sensitive element is equipped with a needle tip so as to make easy the penetration at the core of the product.

    -KTY element (980÷1000 ohm) or NTC R (25°C)=10KOhm±1%,
    ß(25/85) = 3435
    -Stem Ø 5 x 65 mm in AISI 316 with needle tip
    -TPE thermoplastic rubber handle suitable for food use
    -2-wire cable PP/TPE insulated
    -4-pin M12 female connector

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Output signal type

    thermistor

    Removable insert

    no

    Sensing element

    NTC R(25°C)=10Kohm ±1%, beta(25/85)=3435

    KTY R(25°C)=980÷1000 Ohm

    Sensing element operating temperature range
    -50 ÷100°C
    Sheet diameter d=

    Ø 5

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    65 mm

    Sensing part connection

    cable

    Transition sleeve

    yes

    Handle material

    food approved TPE thermoplastic rubber

    Fixing system

    bare stem

    Extension cable

    TPE 2 conductors
    Working temperature -40 ÷ 105°C

    Giá:

    Liên hệ
