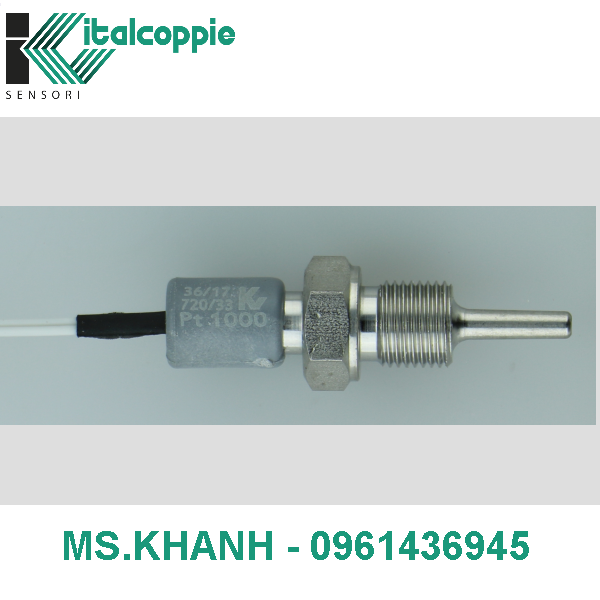

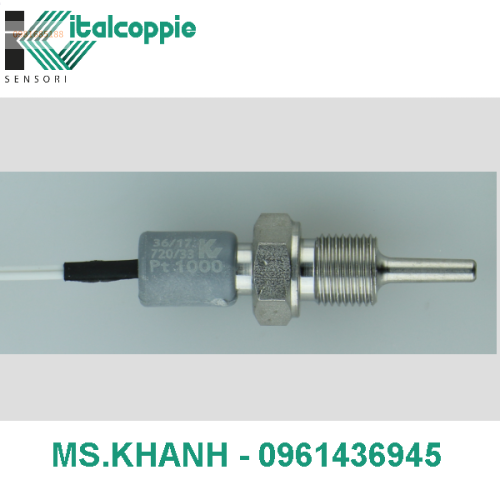

PT 1000 COMPACT RESISTANCE TEMPERATURE DETECTOR 1/8 G WITH INTEGRATED CABLE
PT 1000 COMPACT RESISTANCE TEMPERATURE DETECTOR 1/8 G WITH INTEGRATED CABLE

PT 1000 COMPACT RESISTANCE TEMPERATURE DETECTOR 1/8 G WITH INTEGRATED CABLE

  • Mã sản phẩm:

    D045002B

    • Compact resistance temperature detector probe with integrated cable

    -RTD probe Pt 1000 Cl. A
    -thermowell AISI 316L threaded 1/8 G
    -outgoing unipolar cables
    -Molex µFit 43025-0200 connector termination

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt1000 ? @ 0°C

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Sensing element operating temperature range
    -50 ÷150°C
    Sensing part maximum working temperature

    180°C

    Sheet material

    AISI 316L

    CONE TAPERED BAR STOCK THERMOWELL WITH THREADED CONNECTION G 1/8 M
    Product type

    accessory

    Accessory type

    thermowell

    Thermowell construction

    monolithic

    Thermowell rod shape

    tapered conic

    Maximum thermowell stem diameter


    Giá:

    Liên hệ
