COMPACT RTD
COMPACT RTD
COMPACT RTD

COMPACT RTD

  • Mã sản phẩm:

    TRC

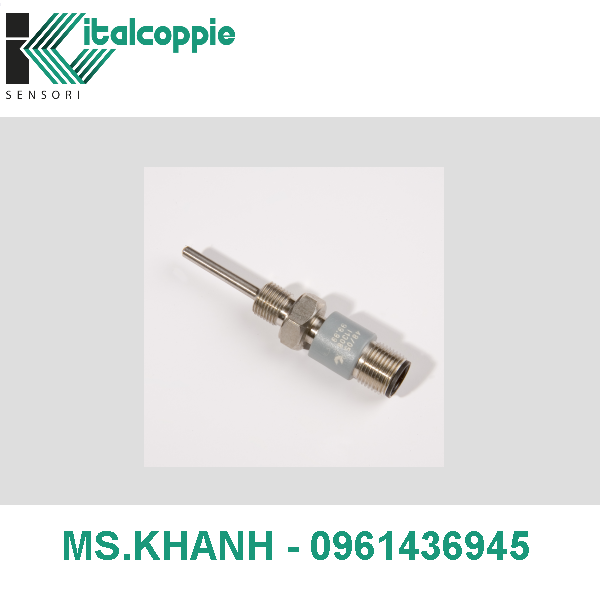

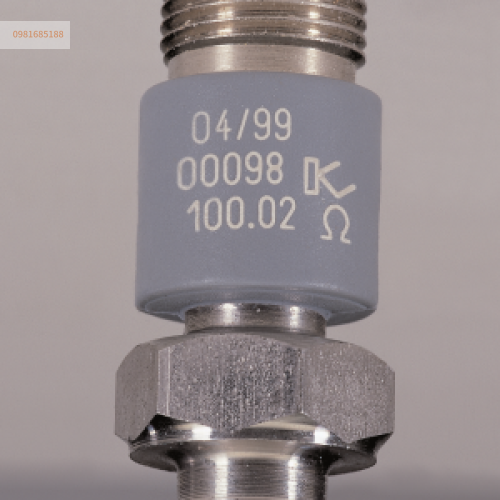

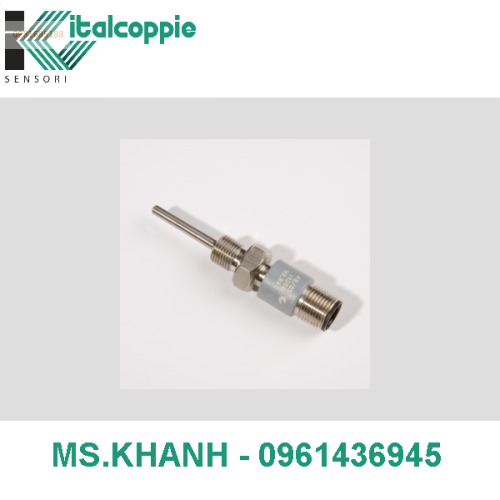

    • Compact RTD for temperatures up to 120°C

    -IP67 OVERMOULDED connector with M12x1 metallic screwed plug
    – single element 4 wires RTD
    – fast response time with short immersion
    – suitable for applications in liquids

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    single 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Sensing element operating temperature range
    -50 ÷120°C
    Sheet diameter d=

    Ø 3,5 tapered conic to Ø 3 mm

    Response time (*)
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step
    < 3,5 seconds

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    13 mm

    24 mm

    Sensing part connection

    connector

    Type of connector

    male 4-pin connector with M12x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

  • Giá:

    Liên hệ

  • Lượt xem:

    3080
