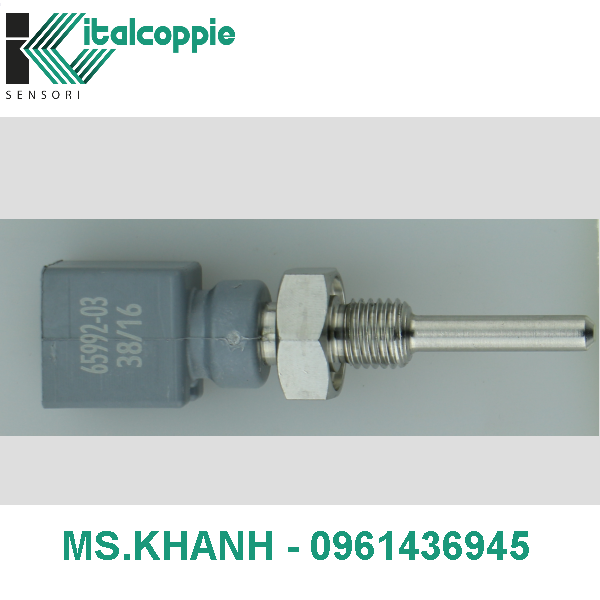

COMPACT NTC PROBE WITH M8X1 THREADING CONNECTION (HOLD GULLY)
COMPACT NTC PROBE WITH M8X1 THREADING CONNECTION (HOLD GULLY)

COMPACT NTC PROBE WITH M8X1 THREADING CONNECTION (HOLD GULLY)

  • Mã sản phẩm:

    B061001B

    • Compact NTC probe

    -NTC probe 10K 3977
    -threaded connection M8X1
    -overmoulded plug RAST 5.0

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermistor

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(25°C)=10Kohm ±1%, beta(25/85)=3977

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Insulation resistance
    100 M ?@ 1000 Vdc.
    Sensing element operating temperature range
    -50 ÷120°C
    Sheet diameter d=

    Ø 4 mm

    Sheet material

    AISI 316

    Sensing part connection

    connector

    Type of connector

    RAST 5.0 male connector

    Connection body material

    POLYAMYDE (MOULDED)

    Maximum connector temperature

    90°C

    Fixing system

    threaded connection

    Process connection (*)
    (*) Thread STANDARDS (CYL. GAS in accordance with UNI-ISO 228) (CON. GAS in accordance with UNI-ISO 7-1) (NPT in accordance with ANSI B 1.20.1)

    Giá:

    Liên hệ

  • Lượt xem:

    3081
