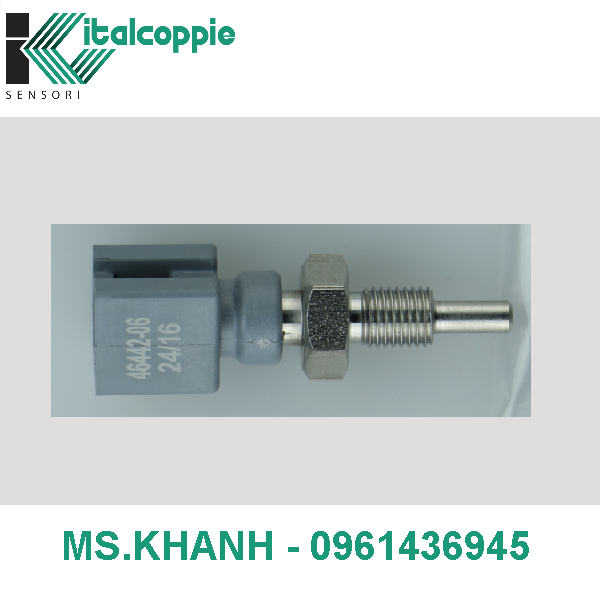

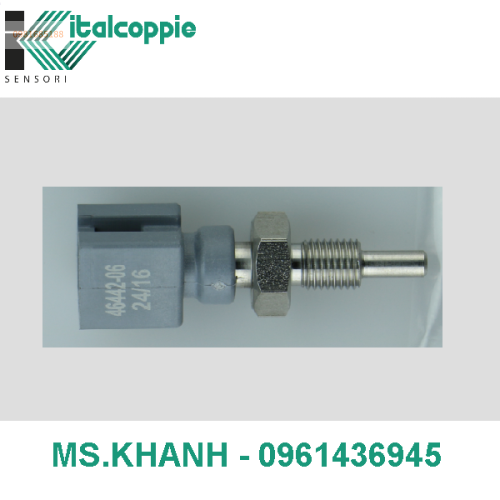

COMPACT NTC PROBE WITH M8X1 THREADING CONNECTION
COMPACT NTC PROBE WITH M8X1 THREADING CONNECTION

COMPACT NTC PROBE WITH M8X1 THREADING CONNECTION

  • Mã sản phẩm:

    B061002B

    • Compact NTC probe

    -NTC probe 10 K +/- 1% beta (25/85)=3977
    -threaded connection M8x1
    -overmoulded plug RAST 5.0

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(25°C)=10Kohm ±1%, beta(25/85)=3977

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermistor

    Insulation resistance
    100 M ?@ 1000 Vdc.
    Sensing element operating temperature range
    -50 ÷120°C
    Sheet diameter d=

    Ø 4 mm

    Sheet material

    AISI 316

    Stem length L=

    10 mm

    Sensing part connection

    connector

    Type of connector

    RAST 5.0 male connector

    Connection body material

    POLYAMYDE (MOULDED)

    Maximum connector temperature

    90°C

    Fixing system

    threaded connection

    Giá:

    Liên hệ
