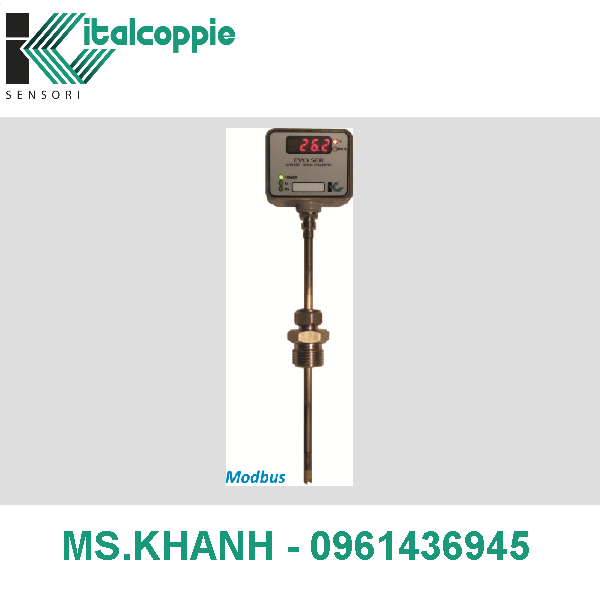

TEMPERATURE AND HUMIDITY SENSOR WITH RS-485 SERIAL OUTPUT (MODBUS RTU)
TEMPERATURE AND HUMIDITY SENSOR WITH RS-485 SERIAL OUTPUT (MODBUS RTU)

TEMPERATURE AND HUMIDITY SENSOR WITH RS-485 SERIAL OUTPUT (MODBUS RTU)

  • Mã sản phẩm:

    EVOSERUI

    • Programmable Parameter

    By a single cable, it is possible create a sensors network and interfacing them directly to a PLC or a PC equipped with a supervisory software (SCADA). The connection between the devices is realized with M12 connectors for rapid installation without errors and with degree of protection IP67. The stem realized with flexible compact mineral insulated cable (Ø6mm) it is available in different lengths and is ideal for critical mechanically applications ; in additions are available various types of process connection welded to the stem and also
    sinterized filters.

    TECHNICAL DATA




    Supply voltage
    12 ÷30 Vdc (polarity protected)
    Accuracy

    refer to the graph

    Power consumption

    0,25 W (without display)

    0,5 W (with display)

    Communication protocol

    modbus RTU (max. baud rate 38.400)

    Serial interface

    RS-485 (not insulated)

    Input/Output insulation

    None

    Indicator LED

    1 green led for the power supply

    1 red led for the serial communication Tx

    1 red led for the serial communication Rx

    Range configurations

    modifiable using the special EVOSER SET configuration kit (a PC with Windows operating system is required)

    PCB operating temperature
    -40 ÷65 °C
    EMC

    According EN 61326

    Sensing element operating temperature range
    -40 ÷120°C
    Type of sensor

    digital

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensing element

    SENSIRION STH75 model digital sensor

    Sensor protection

    removable filter

    Response time (*)
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step
    less than 30 seconds (without filter)

    M.I.C. min. bending radius


    Giá:

    Liên hệ

  • Lượt xem:

    3600
