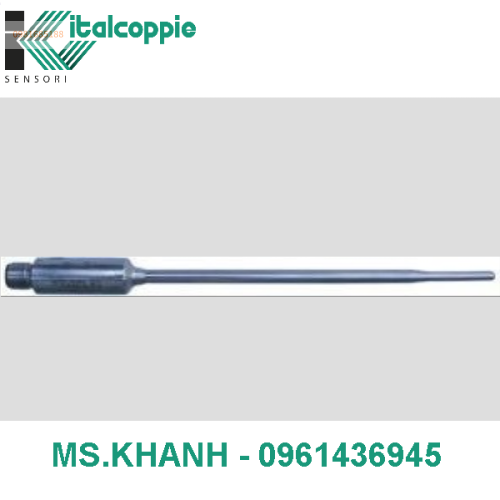

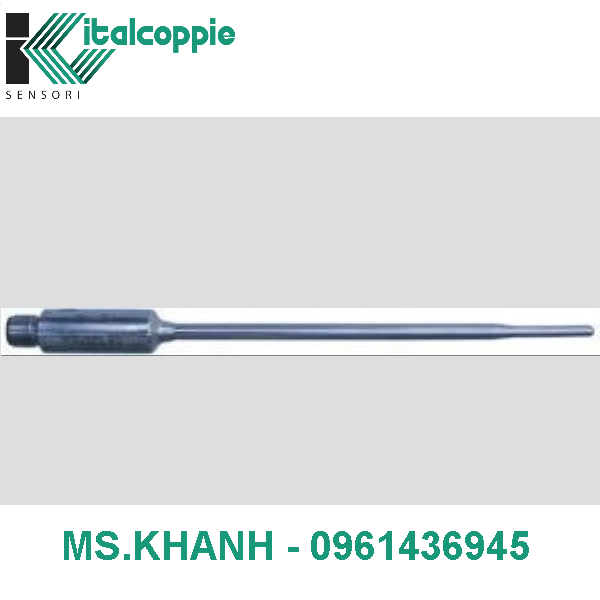

EVOMINIX F COMPACT PROGRAMMABLE TEMPERATURE TRANSMITTER WITH METALLIC BODY AND Ø6MM STEM TAPERED TO
EVOMINIX F COMPACT PROGRAMMABLE TEMPERATURE TRANSMITTER WITH METALLIC BODY AND Ø6MM STEM TAPERED TO

EVOMINIX F COMPACT PROGRAMMABLE TEMPERATURE TRANSMITTER WITH METALLIC BODY AND Ø6MM STEM TAPERED TO

  • Mã sản phẩm:

    EVOXF

    • 4-20 mA output

    PC-configurable temperature transmitter with integrated probe in a single stainless steel device. Different type of process connections can be welded on the system. It comes in a metallic IP67 body with M12 output connection. It is particularly suited for food, chemical and pharmaceutical industry.

    TECHNICAL DATA



    Electrical technical data
    PCB operating temperature
    -40 ÷85°C
    Operating humidity
    0 ÷100%
    EMC

    According EN 61326

    Supply voltage
    5 ÷32 Vdc (polarity protected)
    Input/Output insulation

    None

    Electronic board input

    4-wire RTD Pt100

    PCB input range

    From -50°C to +500°C

    Signal

    4÷20 mA

    20÷4 mA

    Permitted load

    860O @ 24 Vdc [Rload= (Vsupply. - 5) / 0.022]

    Sensor break or short-circuit monitoring

    According to NAMUR NE43, selectable between:

    Upper scale (> 21.0 mA)

    Lower scale (< 3,6 mA)

    Accuracy

    Maximum value between ±0.1°C and ±0.1% of span

    Effect of temperature (*)
    (*) devation from 20°C
    Maximum value between ±0,3°C/25°C and ±0,3% of span/25°C

    Long-term stability

    Maximum 0.1% of span per year

    Effect of power supply

    Negligible

    Linear error

    Negligible

    Range configurations

    It is possible set the device by EVOMINI SET configuration kit (it is needed a PC with OS Windows).

    Minimum span


  • Giá:

    Liên hệ
