EVOMINIX C
EVOMINIX C

EVOMINIX C

  • Mã sản phẩm:

    EVOXC

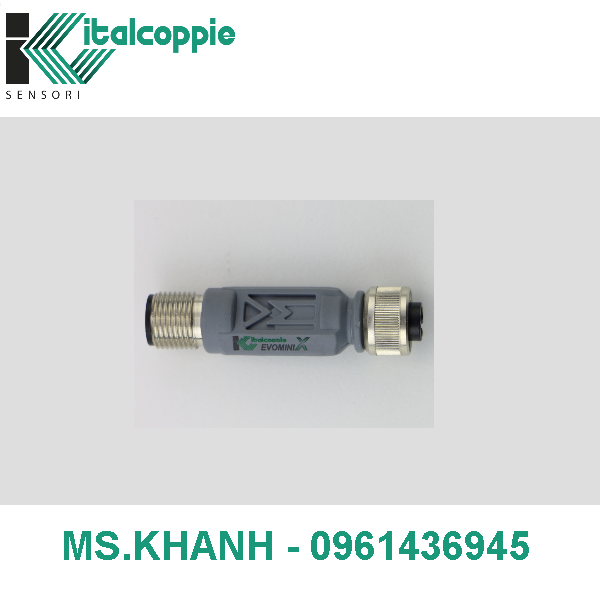

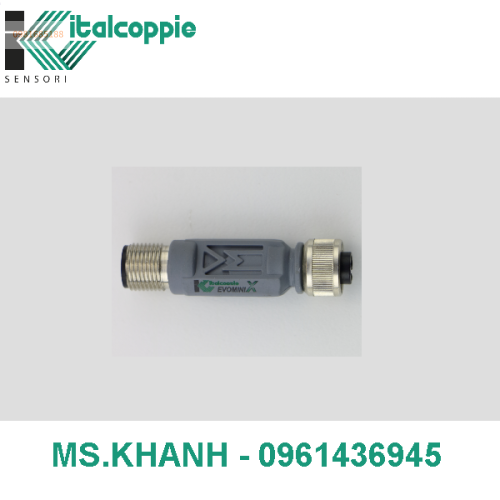

    • Programmable temperature transmitter with 4-20 mA output

    PC-configurable compact transmitter for Pt100 and Pt1000 probes.
    Its integrated connections allow to mount the transmitter directly on the sensor. It comes in a overmolded IP67 casing with M12 connections in both ends.
    It is compatible with Italcoppie TRM and TRC probe series.

    TECHNICAL DATA



    Electrical technical data
    PCB operating temperature
    -40 ÷85°C
    Operating humidity
    0 ÷100%
    EMC

    According EN 61326

    Supply voltage
    5 ÷32 Vdc (polarity protected)
    Input/Output insulation

    None

    Electronic board input

    RTD Pt100/Pt1000 (a= 0,00385) 2, 3 o 4 wire connection

    PCB input range

    From -200°C to +850°C

    Sensor exciting current

    ~100 uA

    Sensor wire maximum resistance

    3 or 4 wire connection: 20 ohm/wire

    2 wire connection: 40 ohm

    Signal

    4÷20 mA

    20÷4 mA

    Permitted load

    860O @ 24 Vdc [Rload= (Vsupply. - 5) / 0.022]

    Sensor break or short-circuit monitoring

    According to NAMUR NE43, selectable between:

    Upper scale (> 21.0 mA)

    Lower scale (< 3,6 mA)

    Accuracy

    Maximum value between ±0.1°C and ±0.1% of span

    Effect of temperature (*)
    (*) devation from 20°C
    Maximum value between ±0,3°C/25°C and ±0,3% of span/25°C

    Long-term stability

    Maximum 0.1% of span per year

    Effect of power supply

    Negligible


    Giá:

    Liên hệ
