4 -20MA LOOP POWERED DISPLAY
4 -20MA LOOP POWERED DISPLAY

4 -20MA LOOP POWERED DISPLAY

  • Mã sản phẩm:

    STR215

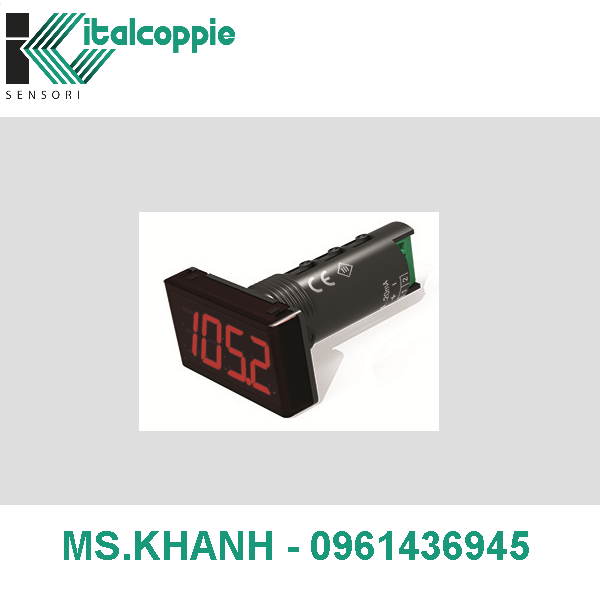

    • Loop powered display for the EVOMINI series temperature transmitters

    4 digit display designed to be connected to the evomini series loop powered temperature transmitters; it requires no auxiliary power and is supplied directly from the measured current. The measured values are scalable and the programmation is done by the 3 integrated buttons key. The display has a compact, standardized
    design and it fits into a standard 22.5mm borehole for signal lamps.

    TECHNICAL DATA



    Power supply

    from loop current

    Signal
    4 ÷20 mA
    PCB input range
    3,8 ÷22,5 mA (guaranteed up from 3.2 to 25 mA)
    Voltage drop (I=20mA)

    = 7 V

    Input resistance

    = 200 O

    Accuracy

    0,2 % vfs + 1 digit

    Type of display

    4 digit (segment red), height 14 mm

    Input signal sampling

    1 sample/second

    Protection class (*)
    (*) Protection class
    III

    Ambient tightness degree (*)
    (*) in accordance with IEC 60529
    Front panel IP65

    Rear IP20

    Dimensions

    48 mm x 26 mm x 65 mm

    Weight

    abaut 30 gr

    Operating and storage conditions

    Operating temperature: -30 ÷ 70°C

    Storage temperature: -40 ÷ 80°C

    Humidity: >80% (non condensing)

    Other characteristics

    3 keys for the programmation

    Password protection to prevent unauthorised changes of settings

    Display alarm for values outside the specified range (Hi, Lo)

    Calculation of the square root

    Damping of the measured signal (filter time programmable)

  • Giá:

    Liên hệ

  • Lượt xem:

    2525
