EVOMINI T
EVOMINI T

EVOMINI T

  • Mã sản phẩm:

    EVOMINIT

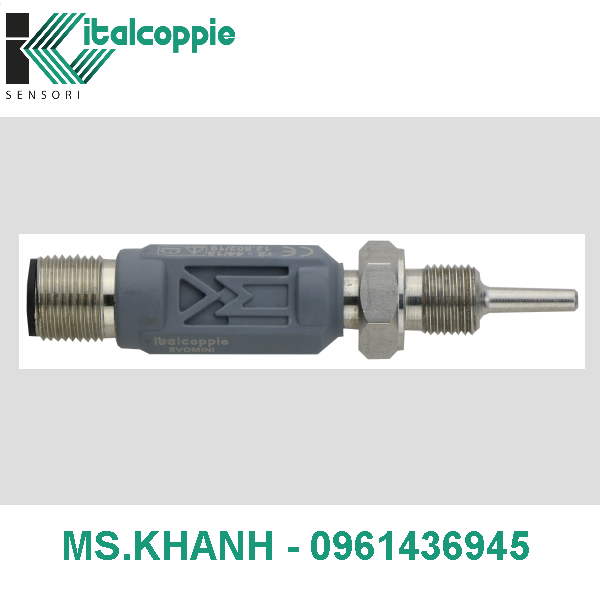

    • Compact temperature probe with 4 ÷ 20mA transmitter with fixed range

    This device can be a reliable alternative to common assemblies with connection head. Then moulded connector allow easy installation

    TECHNICAL DATA




    Supply voltage
    10 ÷28 Vcc (polarity protected)
    Accuracy

    =0,3°C

    Effect of temperature (*)
    (*) devation from 20°C
    Maximum value between ±0,3°C/25°C and ±0,3% of span/25°C

    Permitted load

    700 O @ 24 Vcc [RLO= (Vsupply - 10) / 0,020]

    Sensor failure signalling

    upper scale (> 21.0 mA)

    downscale (< 3.6 mA) action

    Sensor short circuit signalling

    Fixed at lower limit of range (< 3.6 mA)

    Factory default

    ranges available:

    0 ÷ 100 °C

    -50 ÷ 50 °C

    Other configurations on request

    Effect of power supply

    Negligible

    PCB operating temperature
    -40 ÷80°C
    EMC

    According EN 61326

    Sensing element operating temperature range
    -50 ÷110°C
    Output signal type

    4÷20 mA

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Sensing element

    Pt1000 ? @ 0°C


    Giá:

    Liên hệ

  • Lượt xem:

    2634
