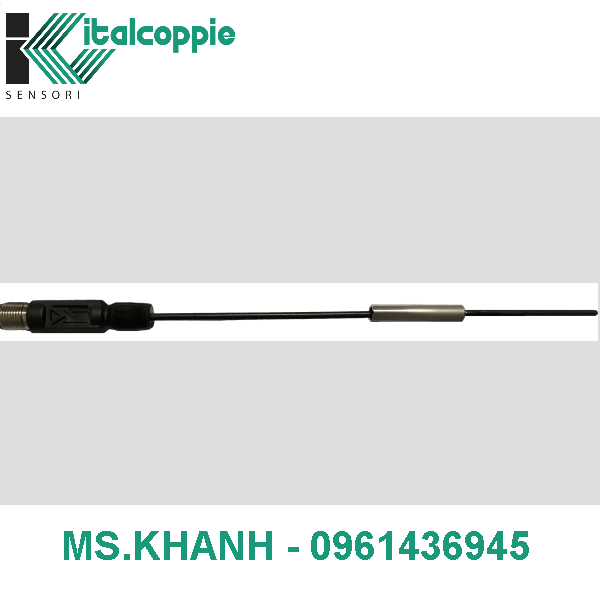

Thermodynamic level switch with integrated temperature sensor
Point-level switch sensor with mineral insulated probe (MgO), overmolded M12 connection (IP67), flexible stem and Pt1000 integrated output.
Thermodynamic effect working principle.
Particularly suited to control liquid level in tanks, boiler and to control pumps, valves, alarm systems etc..
TECHNICAL DATA
PCB operating temperature
-40 ÷80°C
Pressione barometrica massima d' esercizio elemento sensibile
Ambient tightness degree (*)
(*) in accordance with IEC 60529
Water (acqueous solutions): 4°C to -5°C from boiling point (i.e., 95°C for water @ 1bar). Oil (oily solutions): 5°C to 200°C (kinematic viscosity < 1500mm^2 /s)
In case of measurements in hard water, stems with anti-adhesion and anti-corrosion treatments suitable for food contact are provided
M.I.C. min. bending radius
9mm (about 60mm of non-flexible material not included)
horizontal mounting switch lenght: 200 mm
Vertical mount switch length: custom
Horrizontal (straight stem), Vertical (stem bended > 90°)
The device can be supplied with the process connection welded on the stem or with a compression fitting
Process connection (*)
(*) Thread STANDARDS (CYL. GAS in accordance with UNI-ISO 228) (CON. GAS in accordance with UNI-ISO 7-1) (NPT in accordance with ANSI B 1.20.1)
1/8" GAS CIL. sec. UNI-ISO 228
male thread G 1/2"UNI ISO 228
5 pin male connection with metallic M12x1 (in accordance to DIN-VDE0627)
