EVOWL-RX
EVOWL-RX

EVOWL-RX

  • Mã sản phẩm:

    EVO015

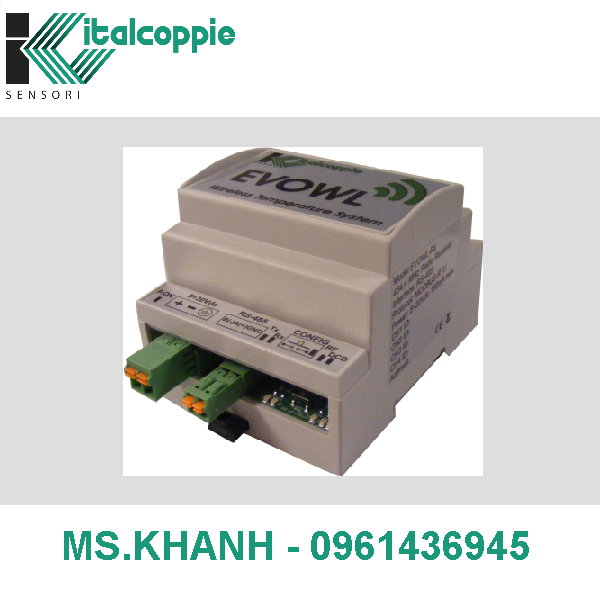

    • Wireless receiver for EVOWL-Tx devices

    Wireless receiver for the EVOWL-Tx serie temperature probe; this device can manage at the same time up to 4 EVOWL-Tx devices. The Modbus RTU slave digital output allow the direct interfacing to industrial system like PLC, SCADA aplpications, HMI etc..

    TECHNICAL DATA



    Working temperature
    -10 ÷60 °C
    Operating humidity
    0 ÷80% (non condensing)
    Supply voltage
    5 ÷30 Vdc (polarity protected)
    Power consumption

    max. 0,5W

    Antenna connector

    SMA type

    Type of antenna

    433 MHz adhesive

    Antenna cable length

    2 meters

    Transmission frequency

    434,4 MHz (PPM - pulse position modulation)

    Antenna dimensions

    115 mm x 22 mm x 5,4 mm

    Power supply connector

    removable 2-pin female

    Serial connector

    removable 2-pin female

    Serial interface

    RS-485 (not insulated)

    Communication protocol

    modbus RTU slave

    Indicator LED

    2 green led for the serial communication

    2 yellow led for the wireless communication

    1 green led for the power supply

    1 red led for the configuration

    Range configurations

    modifiable using the special EVOWL Config configuration kit (a PC with Windows operating system is required)

    Case

    Material ABS, for connection on DIN rails

    Ambient tightness degree (*)
    (*) in accordance with IEC 60529
    IP20

  • Giá:

    Liên hệ

  • Lượt xem:

    3811
