EVOMINIV T
EVOMINIV T

EVOMINIV T

  • Mã sản phẩm:

    EVOMINIVATT

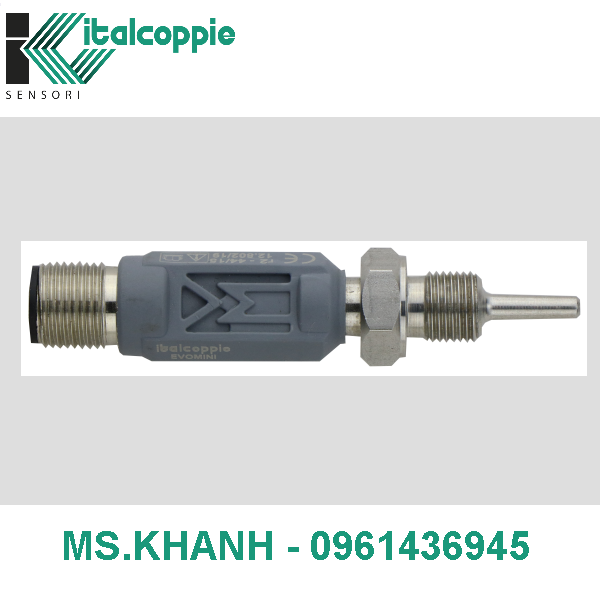

    • COMPACT TEMPERATURE PROBE WITH 0 ÷ 10 V OUTPUT
    Fixed range

    This device can be a reliable alternative to common assemblies with connection head. Then moulded connector allow easy installation

    TECHNICAL DATA




    Supply voltage
    20 ÷28 Vcc (polarity protected)
    Accuracy

    maximum value between ±0.2 °C and ±0.2% of range set

    Effect of temperature (*)
    (*) devation from 20°C
    maximum value between ±0.15 °C/ 25 °C and ±0.15% of range

    Permitted load

    10 Kohm

    Sensor failure signalling

    upscale (> 10,5 V) action

    downscale (0 V) action

    Sensor short circuit signalling

    fixed to downscale (0 V) action

    Factory default

    0 ÷ 100 °C

    -50 ÷ 50 °C

    Effect of power supply

    Negligible

    PCB operating temperature
    -40 ÷80°C
    EMC

    According EN 61326

    Sensing element operating temperature range
    -50 ÷110°C
    Output signal type

    0÷10 V

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    metal sheath

    Sensing element

    Pt1000 ? @ 0°C

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Giá:

    Liên hệ
