M8 EXTENSION CABLE WITH 3-WIRE CABLE TPE INSULATED
M8 EXTENSION CABLE WITH 3-WIRE CABLE TPE INSULATED

M8 EXTENSION CABLE WITH 3-WIRE CABLE TPE INSULATED

  • Mã sản phẩm:

    PRVM8TP

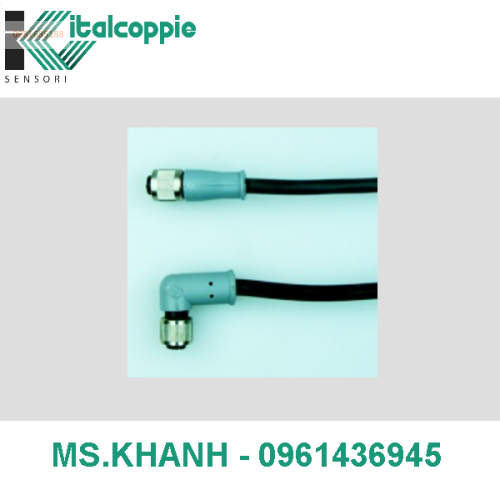

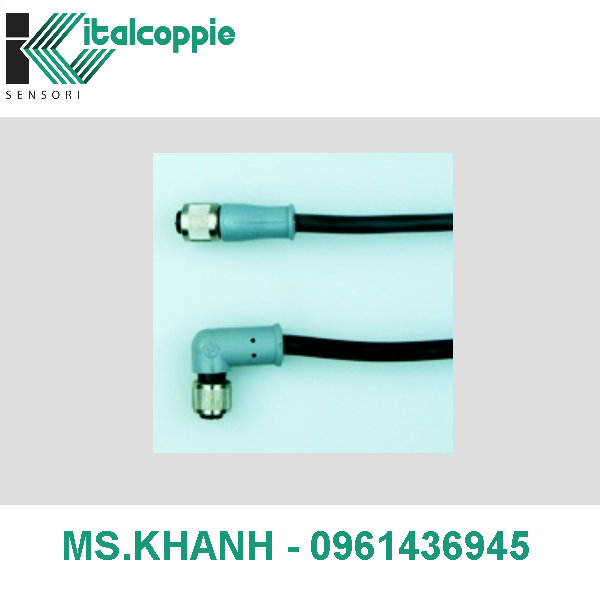

    • Extension cable with 3-pin female M8 connector suitable for TRSV8 probes

    -Overmoulded connection
    -3-wire cable TPE insulated
    -IP67 Degree of protection
    -straight or elbow type connector versions

    TECHNICAL DATA



    Product type

    accessory

    Accessory type

    extension cable

    Type of connector

    female 3-pin connector with M8x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

    Connection body material

    TPE (MOULDED)

    Maximum connector temperature

    90°C

    Ambient tightness degree (*)
    (*) in accordance with IEC 60529
    IP67

    Female connector

    straight M8 female connector

    right-angle M8 female connector

    Male connector

    contatti aggraffati con portacontatti

    Extension cable

    TPE a 3 wire

    EXTENSION CABLE
    Cable conductors

    copper tinned

    Number of cable conductors

    3

    Conductor dimension

    AWG 25

    Conductor feature

    strand (7 wire)

    Primary insulation

    PP (polypropylene)

    Outside diameter of single conductor (*)
    (*) primary insulation
    about Ø 0.95 mm

    Primary insulation colour

    1 white, 2 red


  • Giá:

    Liên hệ

  • Lượt xem:

    3305
