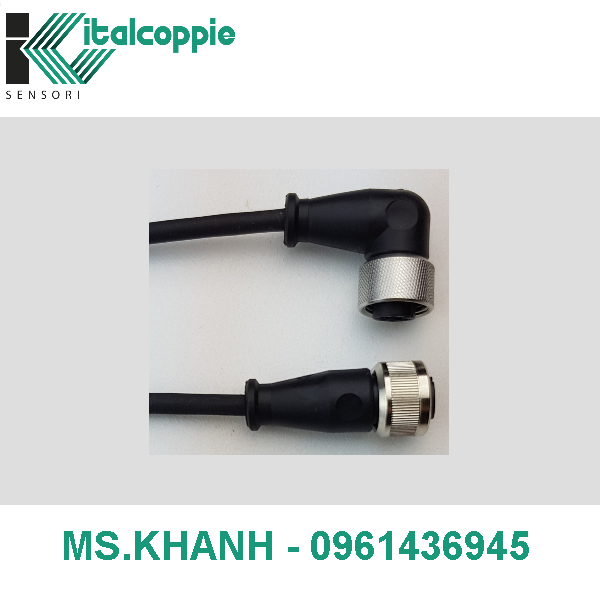

EXTENSION CABLE M12 WITH 2-WIRE TPE INSULATED CABLE
EXTENSION CABLE M12 WITH 2-WIRE TPE INSULATED CABLE

EXTENSION CABLE M12 WITH 2-WIRE TPE INSULATED CABLE

  • Mã sản phẩm:

    PRVM12EVO

    • Extension cables with 2-pin M12 female connector suitable for EVOMIINI series transmitter (4÷20mA loop powered)

    -OVERMOULDED connection
    -2-wire TPE insulated cable (pin 1 white /pin 3 black)
    -IP67 protection degree
    -straight or elbow type connector versions

    TECHNICAL DATA



    Product type

    accessory

    Accessory type

    extension cable

    Type of connector

    female 4-pin connector with M12x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

    Connection body material

    TPE (MOULDED)

    Maximum connector temperature

    90°C

    Female connector

    overmoulded straight M12 female connector

    overmoulded right-angle M12 female connector

    Extension cable

    TPE 2 conductors

    EXTENSION CABLE
    Cable conductors

    copper tinned

    Number of cable conductors

    2

    Conductor dimension

    AWG 24

    Conductor feature

    strand (7 wire)

    Primary insulation

    PP (polypropylene)

    Outside diameter of single conductor (*)
    (*) primary insulation
    about Ø 1.05 mm

    Primary insulation colour

    1 white, 1 black

    Secondary insulation

    TPE (thermoplastic rubber) 87 shore A

    Secondary insulation colour

    black


  • Giá:

    Liên hệ
