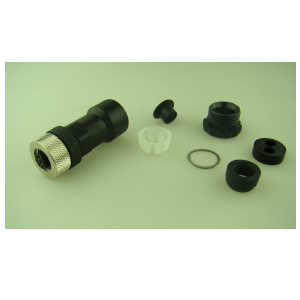

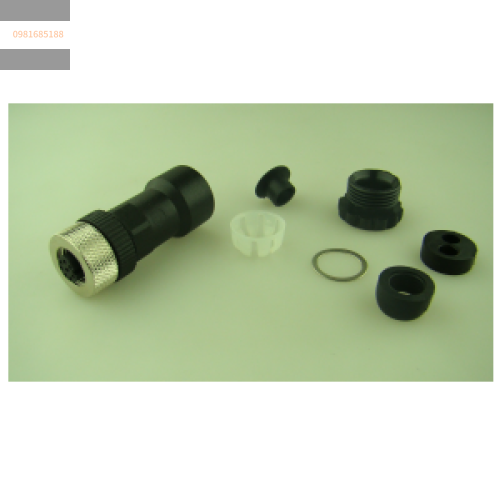

CONNECTOR M12X1 STRAIGHT WITH TERMINAL BLOCK 8 CLAMP CONTACTS
CONNECTOR M12X1 STRAIGHT WITH TERMINAL BLOCK 8 CLAMP CONTACTS
CONNECTOR M12X1 STRAIGHT WITH TERMINAL BLOCK 8 CLAMP CONTACTS

CONNECTOR M12X1 STRAIGHT WITH TERMINAL BLOCK 8 CLAMP CONTACTS

  • Mã sản phẩm:

    CONV063

    • Socket 8 pins with M12x1 straight screwed connection

    It joins in a very easy way (through screwed terminal block) cables with any lengths and insulations and assures a high protection degree IP 65

    TECHNICAL DATA



    Product type

    accessory

    Accessory type

    connector

    Type of connector

    female 8-pin connector with straight output (screw terminals) with M12x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

    Connection body material

    THERMOPLASTIC

    Connector operating temperature
    -25 ÷85°C
    Cable gland dimension
    Ø 5 ÷9 mm
    Maximum conductor gauge

    18 AWG

    Ambient tightness degree (*)
    (*) in accordance with IEC 60529
    IP65

  • Giá:

    Liên hệ

  • Lượt xem:

    3086
