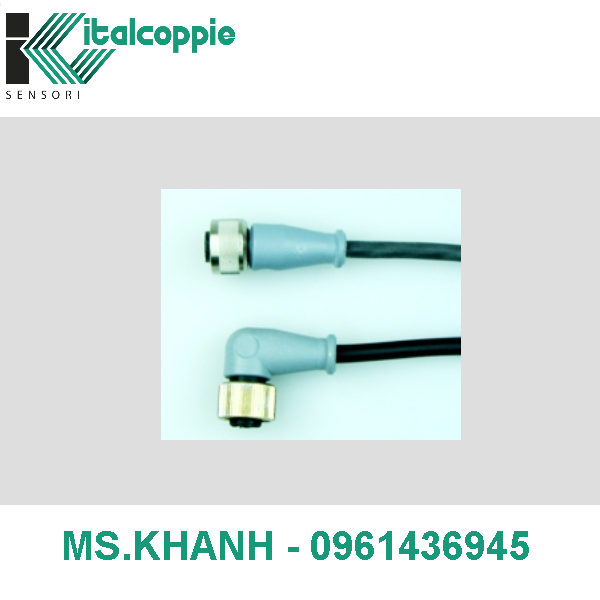

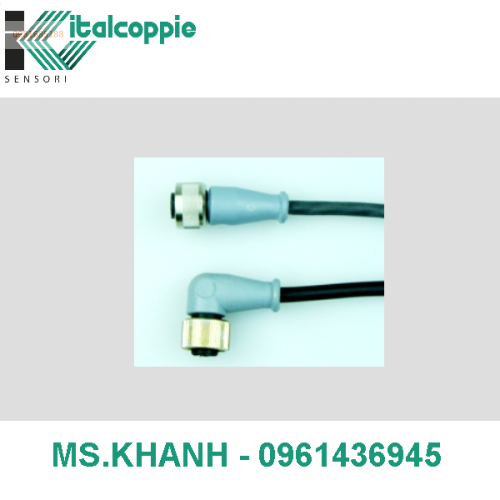

EXTENSION CABLES M8 WITH 3-WIRE SILICONE RUBBER INSULATED CABLE

  • Mã sản phẩm:

    PRVM8GS
  • Extension cables with 3-pin M8 female connector suitable for TRSV8 probes

    -OVERMOULDED connection
    -3-wire SILICONE RUBBER insulated cable
    -IP67 protection degree
    -straight or elbow type connector versions

    TECHNICAL DATA



    Product type

    accessory

    Accessory type

    extension cable

    Type of connector

    female 3-pin connector with M8x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

    Connection body material

    POLYAMYDE (MOULDED)

    Maximum connector temperature

    90°C

    Ambient tightness degree (*)
    (*) in accordance with IEC 60529
    IP67

    Female connector

    straight M8 female connector

    right-angle M8 female connector

    Male connector

    contatti aggraffati con portacontatti

    Extension cable

    silicon 3 wire IEC751 AWG22 Ø4.5 mm

    EXTENSION CABLE
    Cable conductors

    copper tinned

    Number of cable conductors

    3

    Conductor dimension

    AWG 22

    Conductor feature

    strand (11 wire)

    Primary insulation

    GS (silicone rubber)

    Primary insulation colour

    1 white, 2 red

    Secondary insulation

    GS (silicone rubber)


    Giá:

    Liên hệ
