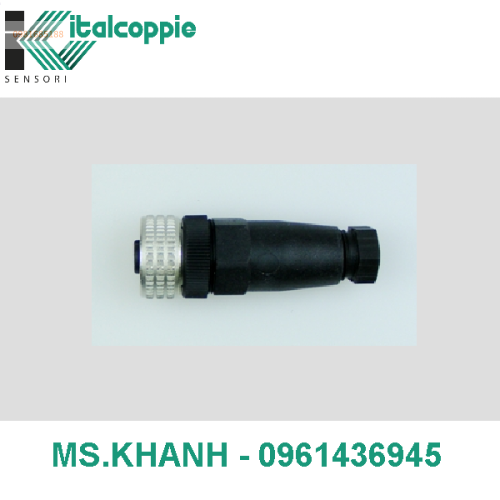

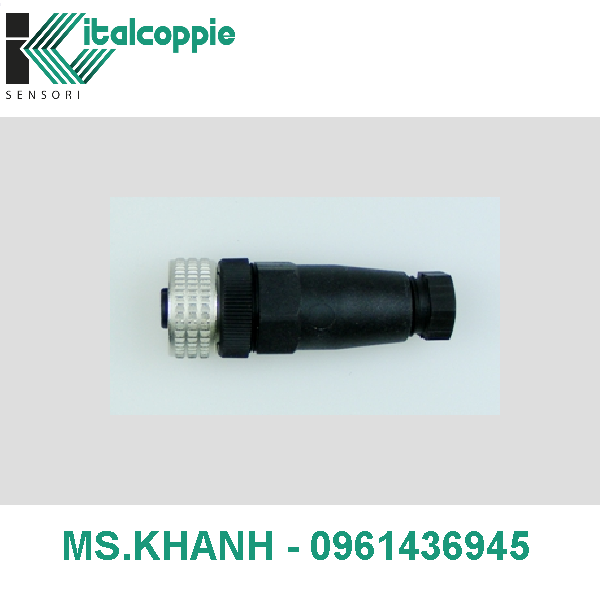

M12X1 STRAIGHT CONNECTOR WITH TERMINAL BLOCK 4 ELECTRICAL CONTACTS
M12X1 STRAIGHT CONNECTOR WITH TERMINAL BLOCK 4 ELECTRICAL CONTACTS

M12X1 STRAIGHT CONNECTOR WITH TERMINAL BLOCK 4 ELECTRICAL CONTACTS

  • Mã sản phẩm:

    CONV032

    • Connector 4 pins socket with screwed connection M12x1 straight

    Connector able to connect in a very easy way (through screwed terminal block) cables with whatever lengths and insulations in a high protection degree (IP67)

    TECHNICAL DATA



    Product type

    accessory

    Accessory type

    connector

    Type of connector

    female 4-pin connector with straight output (screw terminals) with M12x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)

    Connection body material

    THERMOPLASTIC

    Connector operating temperature
    -25 ÷85°C
    Cable gland dimension
    Ø 4 ÷6 mm
    Maximum conductor gauge

    18 AWG

    Ambient tightness degree (*)
    (*) in accordance with IEC 60529
    IP67

  • Giá:

    Liên hệ

  • Lượt xem:

    3393
