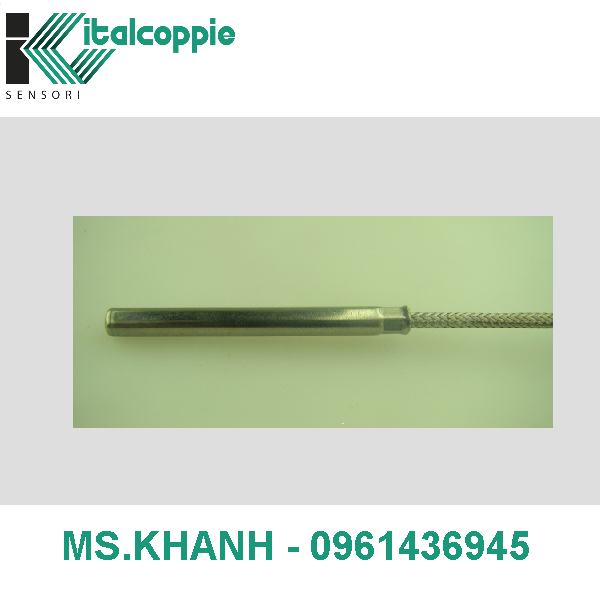

RESISTANCE TEMPERATURE DETECTOR IN TUBE WITH ARMOURED FIBREGLASS CABLE
RESISTANCE TEMPERATURE DETECTOR IN TUBE WITH ARMOURED FIBREGLASS CABLE

RESISTANCE TEMPERATURE DETECTOR IN TUBE WITH ARMOURED FIBREGLASS CABLE

  • Mã sản phẩm:

    FTRTTS

    • Resistance temperature detector in tube with conventional insulated armoured fibreglass cable

    – price-efficient implementation
    – T° MAX 350°C

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    single 3-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Sensing part maximum working temperature

    350°C

    Insulation resistance
    100 M ?@ 100 Vdc.
    Sensing part connection

    cable

    Transition sleeve

    no

    Sheath outside diameter d

    Ø 4 mm

    Ø 5 mm

    Ø 6 mm

    Sheath length L =

    30 mm

    40 mm

    50 mm

    Giá:

    Liên hệ
