PT 1000 PROBE FOR PYROLITIC OVENS
PT 1000 PROBE FOR PYROLITIC OVENS

PT 1000 PROBE FOR PYROLITIC OVENS

  • Mã sản phẩm:

    F053004A

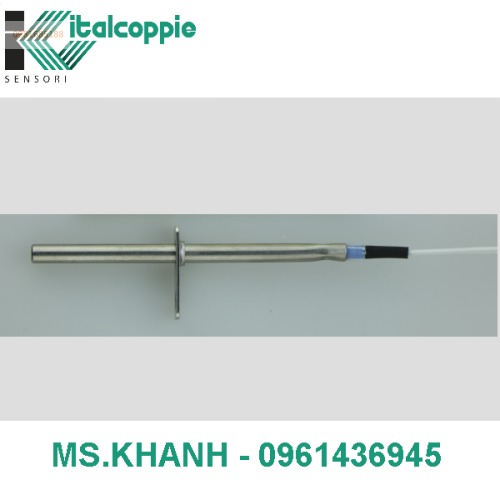

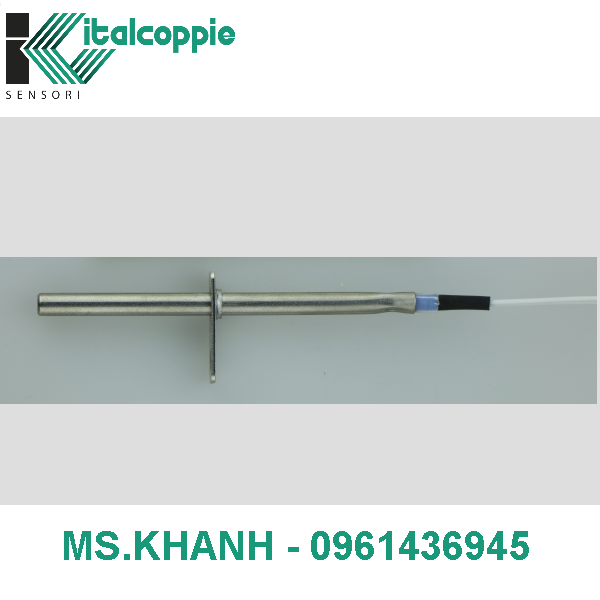

    • Ø 5 mm resistance temperature detector with conventional insulated cable and fixing plate

    -RTD probe Pt 1000 cl. B
    -stainless steel sprinkler Ø 5 x 80 mm (immersion 36 mm) for pyrolitic ovens
    -stainless steel fixing plate 24 x 10 x thickness 1 mm
    -2 unipolar cables MFA insulated
    -2-pin female Molex connector termination

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. B

    Sensing part maximum working temperature

    260°C (500°C for short period)

    Insulation resistance
    1000 M ?@ 250 Vdc.
    Dielectric strength

    1500 Vac

    Sensing part connection

    cable

    Transition sleeve

    no

    Sheath outside diameter d

    Ø 5 mm

    Sheath length L =

    x 80 mm
    Immersion I= 36 mm
    Sheet material

    INOX


    Giá:

    Liên hệ
