DOUBLE PT 100 PROBE FOR THERMOSTATIC BATHS (2 MEASUREMENT POINTS)
DOUBLE PT 100 PROBE FOR THERMOSTATIC BATHS (2 MEASUREMENT POINTS)

DOUBLE PT 100 PROBE FOR THERMOSTATIC BATHS (2 MEASUREMENT POINTS)

  • Mã sản phẩm:

    J013001A

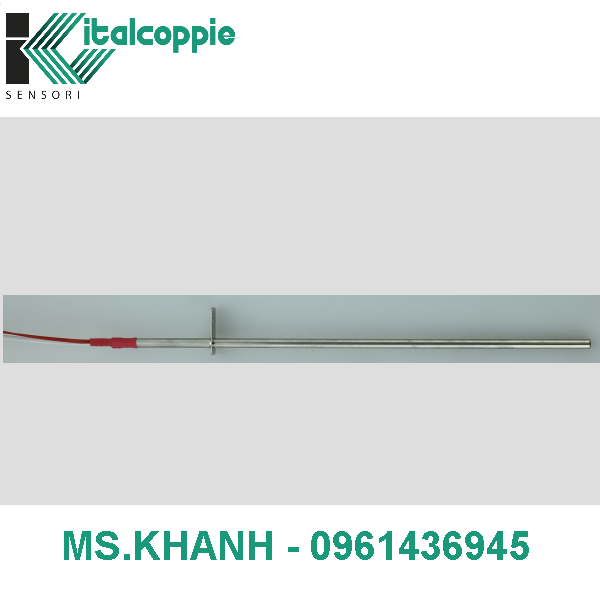

    • Ntc probe Ø 4 mm at 2 measurement points with fixing plate

    -2 ntc probes Pt 100 cl.A
    – INOX bulb Ø 4 x 200 mm (immersion 158 mm)
    -fixing plate INOX 20 x 12 x thickness 0,6 mm for PYROLITIC OVENS
    -nr. 4 single PFA insulated wires
    – MOLEX 4 poles connector ending

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    double 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    Sensing element operating temperature range
    -50 ÷250°C
    Insulation resistance
    100 M ?@ 500 Vdc.
    Sensing part connection

    cable

    Transition sleeve

    no

    Sheath outside diameter d

    Ø 4 mm

    Sheath length L =

    200 mm
    Immersion I= 158 mm
    Sheet material

    AISI 316

    TC/RTD cable to wire

    Single stranded nickel plated wires 26 AWG PFA insulation
    Maximum working temperature 260°C


  • Giá:

    Liên hệ

  • Lượt xem:

    3104
