RESISTANCE TEMPERATURE DETECTOR IN TUBE WITH 2-WIRE SILICONE RUBBER CABLE
RESISTANCE TEMPERATURE DETECTOR IN TUBE WITH 2-WIRE SILICONE RUBBER CABLE

RESISTANCE TEMPERATURE DETECTOR IN TUBE WITH 2-WIRE SILICONE RUBBER CABLE

  • Mã sản phẩm:

    FTR2SIL

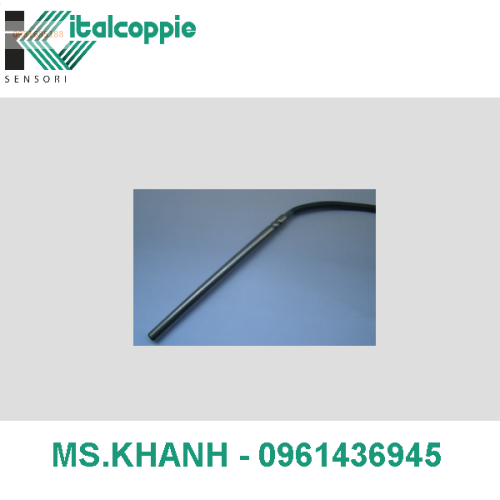

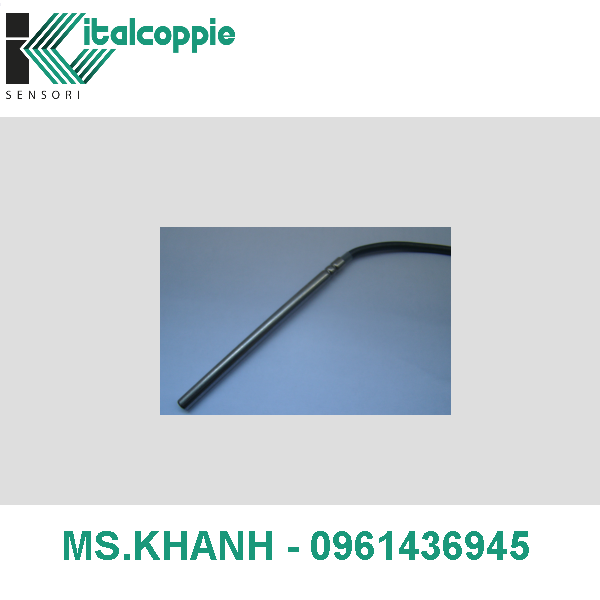

    • Resistance temperature detector in tube with 2-wire silicone rubber conventional insulated cable

    – price-efficient implementation
    – range of use -50÷180°C

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Sensing element operating temperature range
    -40 ÷180°C
    Insulation resistance
    100 M ?@ 100 Vdc.
    Sensing part connection

    cable

    Transition sleeve

    no

    Sheath outside diameter d

    Ø 6 mm

    Sheath length L =

    50 mm

    100 mm

    Sheet material

    INOX

    TC/RTD cable to wire


    Giá:

    Liên hệ
