RESISTANCE TEMPERATURE DETECTOR Ø 1,5 – 2 MM WITH METALLIC TRANSITION L.T AND INTEGRATED CABLE
RESISTANCE TEMPERATURE DETECTOR Ø 1,5 – 2 MM WITH METALLIC TRANSITION L.T AND INTEGRATED CABLE

RESISTANCE TEMPERATURE DETECTOR Ø 1,5 – 2 MM WITH METALLIC TRANSITION L.T AND INTEGRATED CABLE

  • Mã sản phẩm:

    TRELT1520

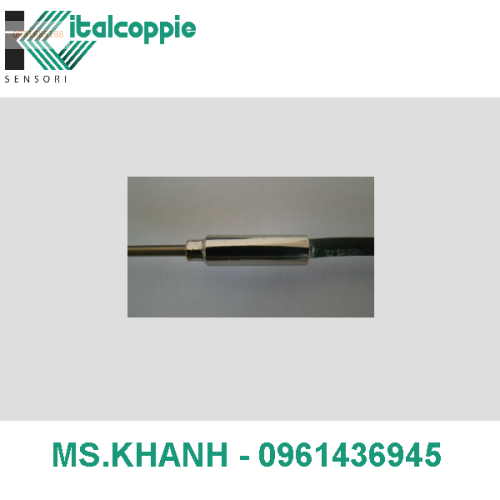

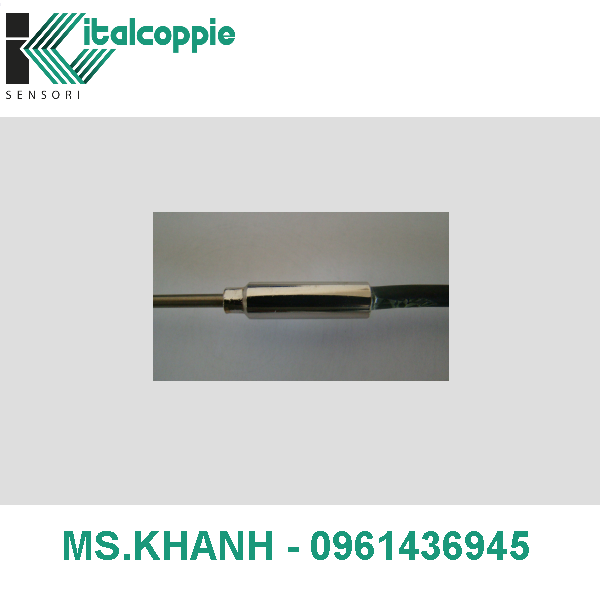

    • Resistance thermometer made of compact mineral insulated cable (M.I.C.) with metallic transition L.T.

    -Suitable for temperatures up to 500°C
    -High response speed thanks to the reduced diameter of the stem

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    single 3-wire

    single 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A
    Operating range (in which the accuracy class is guaranteed) -30 ÷ 350°C
    cl. B
    Operating range (in which the accuracy class is guaranteed) -50 ÷ 500°C
    Sheet diameter d=
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step



    Ø 1.5 mm
    Response time < 1 seconds(*)
    Ø 2 mm
    Response time < 1,5 seconds(*)
    M.I.C. min. bending radius

    3 times the outer diameter (except the sensing tip which length is ~30 mm)

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Realizable sheat lenghts L= (subject to feasibility check)
    50 mm ÷50 m
    Sensing part connection

    cable


    Giá:

    Liên hệ
