M.I.C. PROBE WITH SILICON CABLE
M.I.C. PROBE WITH SILICON CABLE
M.I.C. PROBE WITH SILICON CABLE
M.I.C. PROBE WITH SILICON CABLE
M.I.C. PROBE WITH SILICON CABLE

M.I.C. PROBE WITH SILICON CABLE

  • Mã sản phẩm:

    TRECOSTP

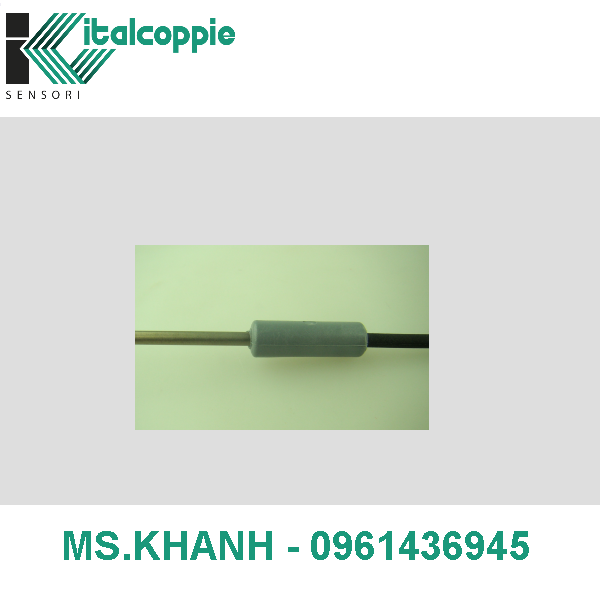

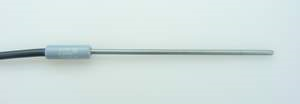

    • Mineral insulated Resistance temperature detector Ø 1,5 – 2 – 3 – 4,5 mm with POLYAMIDE moulded transition

    – POLYAMIDE transition (T° MAX 120°C)

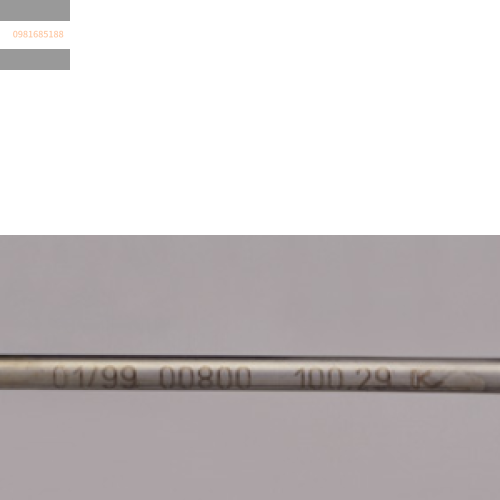

    – Densely packed mineral insulated construction (M.I.C.)
    – Sensing part suitable for temperature up to 500°C

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    single 3-wire

    single 4-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A
    Operating range (in which the accuracy class is guaranteed) -30 ÷ 350°C
    cl. B
    Operating range (in which the accuracy class is guaranteed) -50 ÷ 500°C
    Sheet diameter d=
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step



    Ø 1.5 mm
    Response time < 1 seconds(*)
    Ø 2 mm
    Response time < 1,5 seconds(*)
    Ø 3 mm
    Response time < 3,5 seconds(*)
    Ø 4.5 mm
    Response time < 7 seconds(*)
    M.I.C. min. bending radius

    3 times the outer diameter (except the sensing tip which length is ~30 mm)

    Sheet material

    AISI 316L

    Insulation resistance
    100 M ?@ 100 Vdc.
    Realizable sheat lenghts L= (subject to feasibility check)
    50 mm ÷50 m

    Giá:

    Liên hệ
