PT 100 PROBE Ø 4,5 MM WITH 2 MEASUREMENT LEVELS, M14X1 FEEDTROUGH AND INTEGRATED CABLE
PT 100 PROBE Ø 4,5 MM WITH 2 MEASUREMENT LEVELS, M14X1 FEEDTROUGH AND INTEGRATED CABLE

PT 100 PROBE Ø 4,5 MM WITH 2 MEASUREMENT LEVELS, M14X1 FEEDTROUGH AND INTEGRATED CABLE

  • Mã sản phẩm:

    E041010A

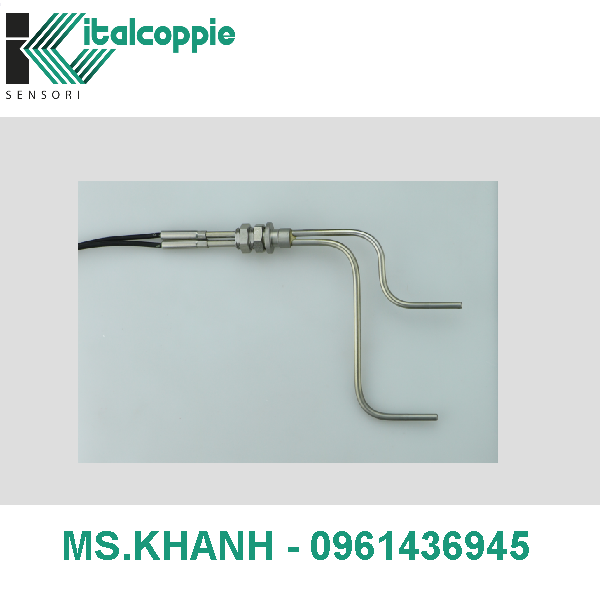

    • Resistance thermometer made of compact mineral insulated cable (M.I.C.) Ø 4.5 mm with feedthrough connection M14x1 with lock ring

    -N ° 2 single elements Pt 100 cl. B shaped at 2 different immersion lengths
    -M14x1 feedthrough connection with 2 lock rings, stainless steel material
    -N ° 2 cables 2-wire TPE insulated

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    single 2-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. B
    Operating range (in which the accuracy class is guaranteed) -50 ÷ 500°C
    Sheet material

    AISI 316

    Sheet diameter d=

    Ø 4.5 mm

    M.I.C. min. bending radius

    3 times the outer diameter (except the sensing tip which length is ~30 mm)

    Insulation resistance
    100 M ?@ 100 Vdc.
    Process connection (*)
    (*) Thread STANDARDS (CYL. GAS in accordance with UNI-ISO 228) (CON. GAS in accordance with UNI-ISO 7-1) (NPT in accordance with ANSI B 1.20.1)
    feedthrough M14x1 INOX (with 2 ferrule)

    Process connection material

    INOX

    Stem length L=

    110 mm

    125 mm

    Sensing part connection


    Giá:

    Liên hệ
