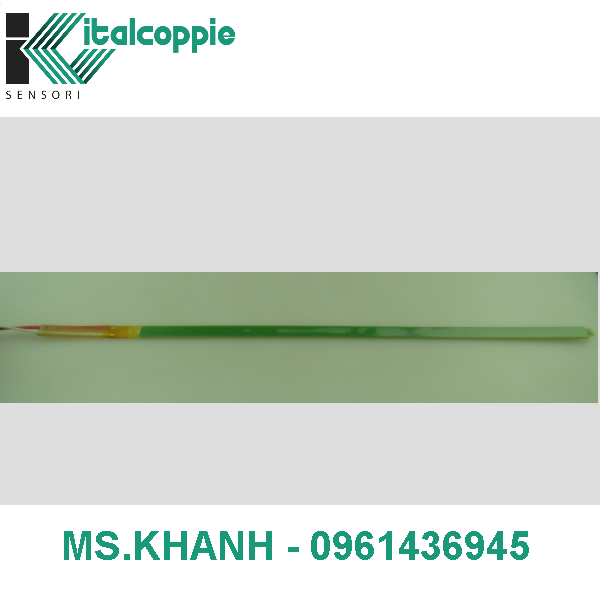

Single RTD probe with thermoplastic substrate fiberglass added for hi temperatures
TECHNICAL DATA
Product type
probe
Type of sensor
thermoresistance
Sensor construction type
with insulator
Sensor protection
plastic sheath
Removable insert
no
Sensing element
Pt100 ? @ 0°C
Sensing Element configuration
single 3-wire
Output signal type
thermoresistance
Accuracy class in accordance to IEC751 (*)
(*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
cl. B
Sensing element operating temperature range
-10 ÷150°C (180°C per brevi periodi)
Insulation resistance
10 G ?@ 2500 Vdc.
Dielectric strength
5000 Vac
Maximum working humidity
95%
Vibration resistance (secondo IEC 68-2-6, test Fc)
