FLAT RTD FOR ELECTRICAL MACHINES
FLAT RTD FOR ELECTRICAL MACHINES
FLAT RTD FOR ELECTRICAL MACHINES

FLAT RTD FOR ELECTRICAL MACHINES

  • Mã sản phẩm:

    A076005A

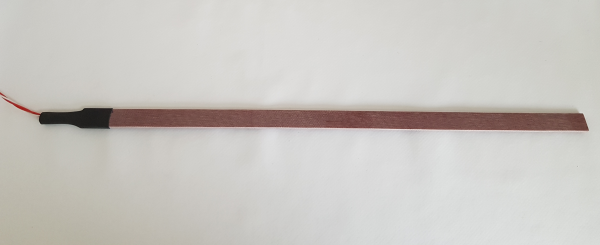

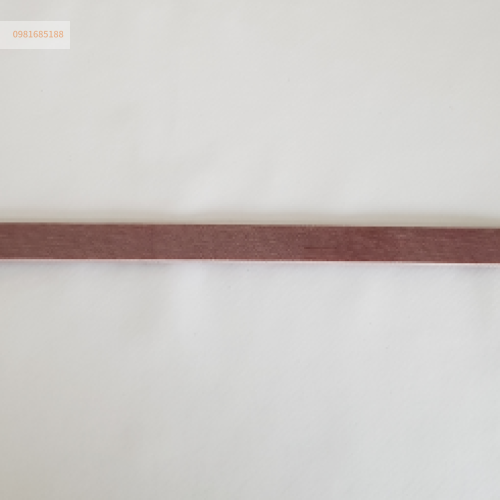

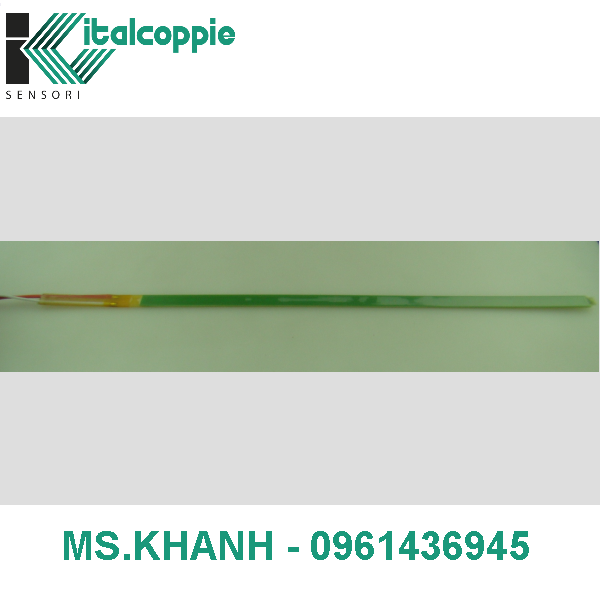

    • Single or double Pt100 cartridge RTD, sealed in high temperature fiberglass case, compact size, with length and section according to customer specifications.

    – Single or double Pt100 Cl.B sensing element in cartridge L= 50mm or 160mm
    – Extension cable, 3-6 conductors ETFE insulated

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with insulator

    Sensor protection

    Fiberglass case

    Output signal type

    thermoresistance

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    single 3-wire

    double 6-wire

    multiple points cartridge RTD

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. B

    Sensing element operating temperature range
    -10 ÷150°C (180°C per brevi periodi)
    Insulation resistance
    10 G ?@ 2500 Vdc.
    Dielectric strength

    5000 Vac

    Maximum working humidity

    95%

    Vibration resistance (secondo IEC 68-2-6, test Fc)
    4g (peak) ;15-250 Hz
    Sheet material

    High temperature FIBREGLASS, type FR5

    Stem length L=

    180 mm

    1000 mm

    Larghezza stelo

    10 mm

    40 mm

    Stem thickness



  • Giá:

    Liên hệ

  • Lượt xem:

    3534
