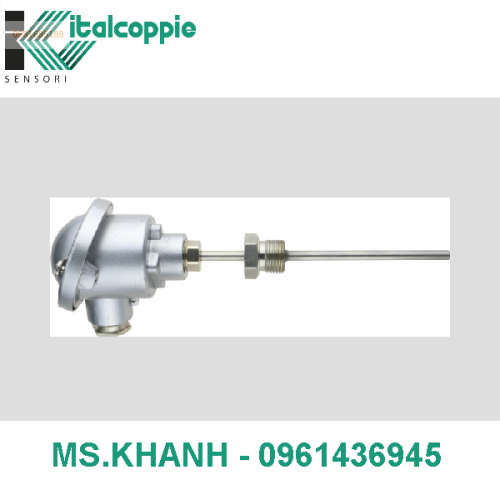

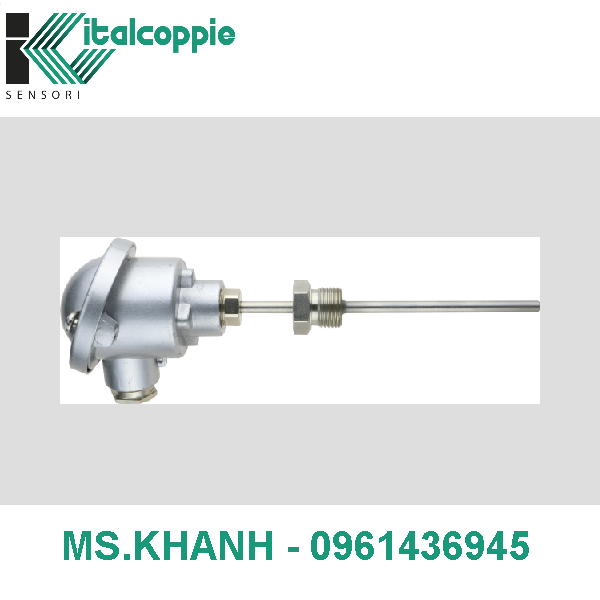

RESISTANCE TEMPERATURE DETECTOR Ø 8MM WITH CONNECTION HEAD
RESISTANCE TEMPERATURE DETECTOR Ø 8MM WITH CONNECTION HEAD

RESISTANCE TEMPERATURE DETECTOR Ø 8MM WITH CONNECTION HEAD

  • Mã sản phẩm:

    ATYTR8

    • Resistance temperature detector probe with connection head suitable for temperatures up to 500°C

    -Extractable measuring Insert
    -Single or Dual resistance temperature detector
    -Stainless steel thermowell Ø8 mm with or without threaded welded connection
    -Adjustability of the cable gland
    -Optional transmitter

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    yes

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    single 4-wire

    double 6-wire

    double 8-wire

    Output signal type

    thermoresistance

    4÷20 mA

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A
    Operating range (in which the accuracy class is guaranteed) -30 ÷ 350°C
    cl. B
    Operating range (in which the accuracy class is guaranteed) -50 ÷ 500°C
    Response time (*)
    (*) test in water in accordance with IEC 751. Time taken to reach 63.2% of temperature step
    < 15 seconds

    Insulation resistance
    100 M ?@ 100 Vdc.
    Thermowell construction

    welded

    Thermowell rod

    Ø 8 mm

    Sheet material

    AISI 316

    Stem length L=

    100 mm

    150 mm
