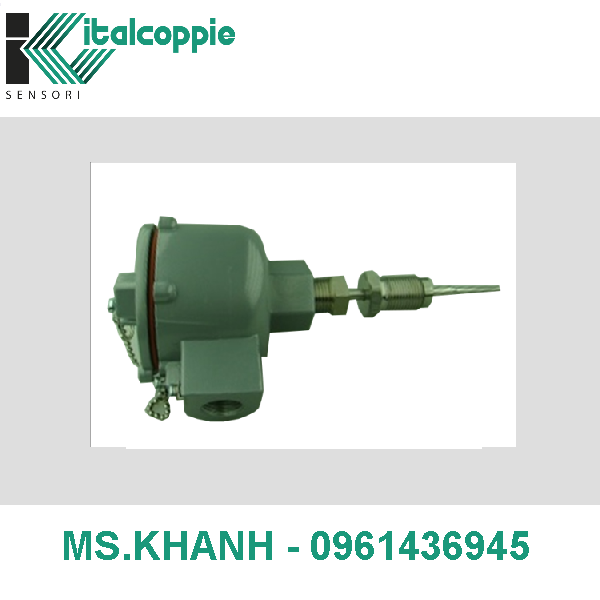

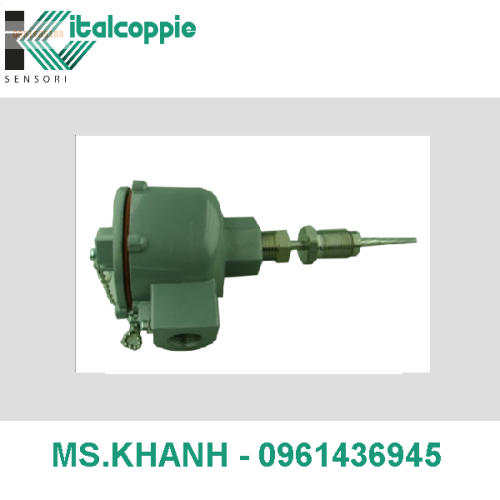

DOUBLE PT100 PROBE WITH TAPERED THERMOWELL
DOUBLE PT100 PROBE WITH TAPERED THERMOWELL

DOUBLE PT100 PROBE WITH TAPERED THERMOWELL

  • Mã sản phẩm:

    F028005A

    • Double RTD with densely packed mineral insulation (M.I.C.) with connection head and thermowell

    -2 Pt100 cl.B sensin element
    – replaceable insert
    – Ø 6 mm reduced to Ø 4 mm tube thermowell-
    – 1/2 G process connection

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    with mineral compact insulation (M.I.C.)

    Sensor protection

    metal sheath

    Removable insert

    yes

    Sensing element

    Pt100 ? @ 0°C

    Sensing Element configuration

    double 6-wire

    Output signal type

    thermoresistance

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. B
    Operating range (in which the accuracy class is guaranteed) -50 ÷ 500°C
    Insulation resistance
    100 M ?@ 100 Vdc.
    Process connection (*)
    (*) Thread STANDARDS (CYL. GAS in accordance with UNI-ISO 228) (CON. GAS in accordance with UNI-ISO 7-1) (NPT in accordance with ANSI B 1.20.1)
    male thread G 1/2"UNI ISO 228

    Immersion I=

    50 mm

    Fixing system

    threaded connection

    Thermowell construction

    welded

    Thermowell rod

    Ø 6 mm with reduced tip Ø 4 x 30 mm

    Sheet material

    AISI 316

    Sensing part connection

    head / connection box


    Giá:

    Liên hệ
