Mã sản phẩm:

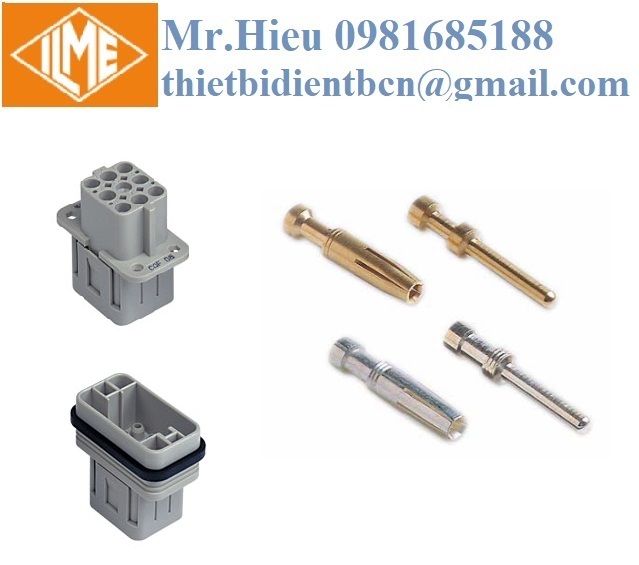

TECHNICAL DETAILS
| Product description | |
| Model | Male/female insert |
| Version | Crimp connections |
| Series | CQ |
| Product type | For male contacts 16A |
| Family | CLASS inserts |
| Size | Size "32.13" |
| N. of poles | 8 poles +  |
| Technical data | |
| Current | 16 A |
| Voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Pollution degree | 3 |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP66/IP67/IP69 with enclosure |
| Further technical details | |
| Characteristics according to EN 61984 | 16A 500V 6kV 3; 16A 400/690V 6kV 2 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 3 mΩ |
| Rated voltage according to UL/CSA | 600 V |
| UL 94 flammability rating | V-0 |
| Weight | 18,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| Quality mark |  , CSA, DNV GL, BV, EAC |
| Conformity | CQC, CE |
