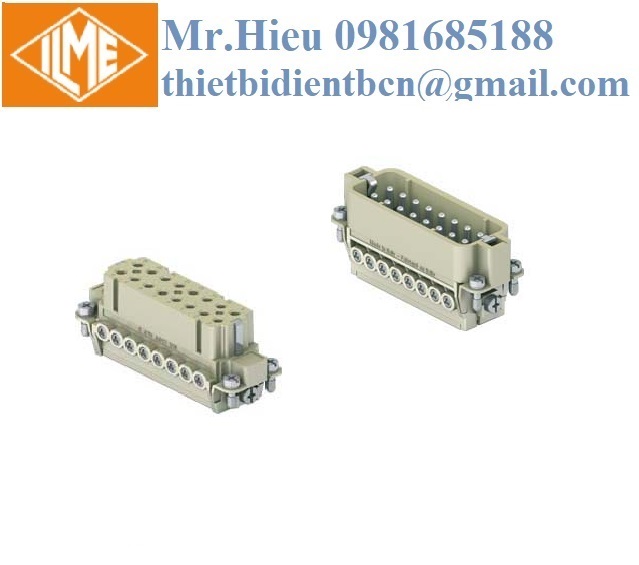

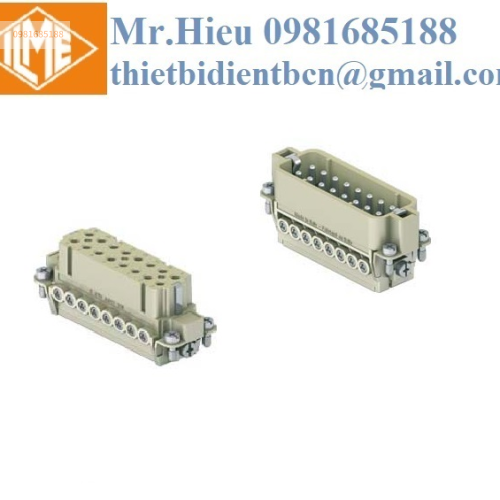

TECHNICAL DETAILS
| Product description | |
| Model | Female/Male insert |
| Version | Screw terminal connections |
| Series | CDA |
| Product type | With male contacts |
| Variant | Without plate |
| Family | CLASS inserts |
| Size | Size "66.16" |
| N. of poles | 16 poles +  |
| Technical data | |
| Current | 16 A |
| Voltage | 250 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Wire cross-section | 0,25 mm² - 2,50 mm² |
| AWG size | 24 - 14 |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| Contact material | Silver plated |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP65/IP66 with enclosure |
| Tightening torque for PE connection | M3,5: 0,8 Nm; 7,1 lb.in (Ph1 or 0,8 x 5,5 mm) |
| Further technical details | |
| Characteristics according to EN 61984 | 16A 250V 4kV 3; 16A 230/400V 4kV 2 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 1 mΩ |
| Rated voltage according to UL/CSA | 600 V |
| UL 94 flammability rating | V-0 |
| Torque for main contact | M3: 0,5 Nm; 4,4 lb.in (Ph0 or 0,6 x 3,5 mm) |
| Weight | 61,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| Quality mark |   DNV GL, BV, EAC |
| Conformity | CQC, CE |
