Mã sản phẩm:

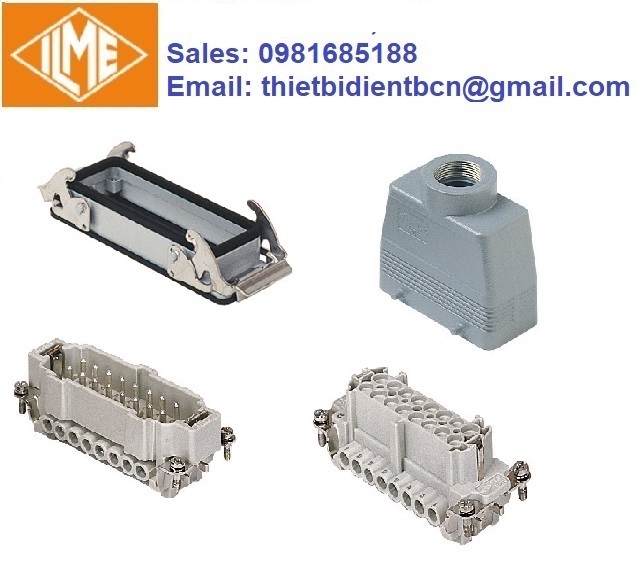

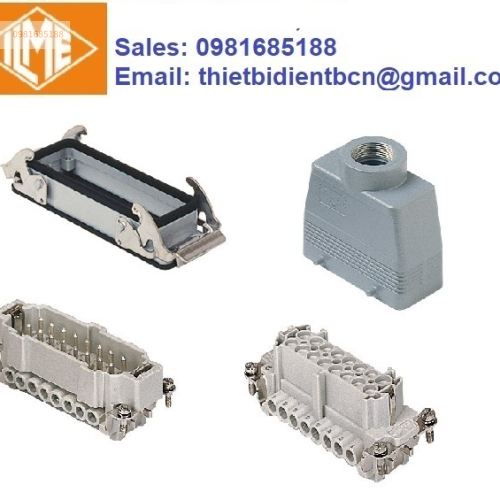

jack cam vuong 16 chan CNZ 16 IV bao gồm:
Đế giắc cắm C7I 16
Vỏ giắc cắm CHV 16
Ruột giắc cắm CNEM 16 T
Ruột giắc cắm CNEM 16 T
Giá:
Lượt xem:
| Product description | |
| Product type | Complete connector |
| Series | CNZ |
| Connection type | Screw terminal connection |
| Size | Size \"77.27\" |
| N. of poles | 16 poles + ![\"\"](\"https://www.ilme.com/symfony/web/bundles/ilmebackend/img/symbols/terra.png\") |
| Cable entry | Pg21 |
| Specification | Bulkhead mounting housing with 2 levers and hood with top cable entry |
| Technical data | |
| Current | 16 A |
| Voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Pollution degree | 3 |
| Wire cross-section | 0,50 mm² - 2,50 mm² |
| AWG size | 20 - 14 |
| Contact type | Turned silver plated |
| IP degree of protection | IP66 (and IP69 DIN 40050 - 9) |
| Further technical details | |
| Weight | 480,00 g |
