Mã sản phẩm:

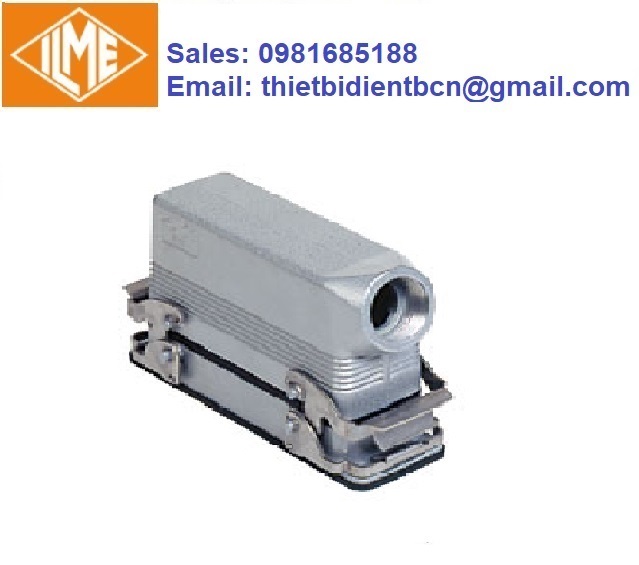

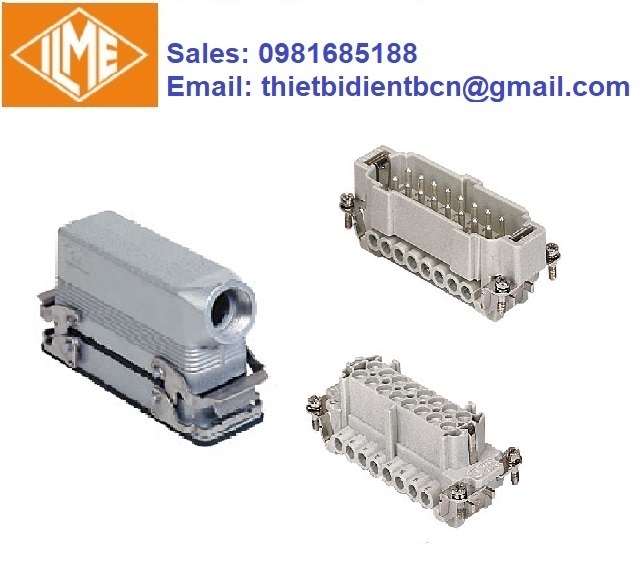

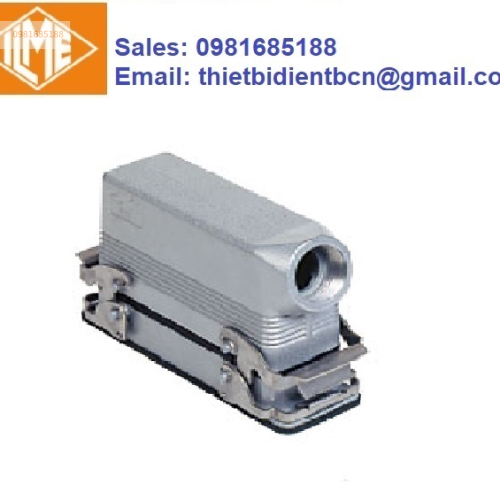

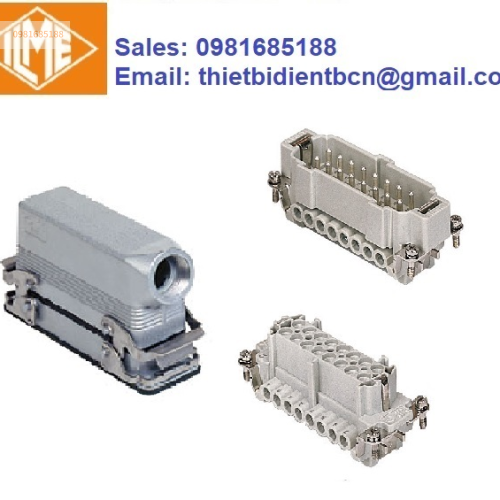

Giắc cắm công nghiệp 16 chân CNZ 16 IO| jack cam vuong 16 chan CNZ 16 IO
Đế giắc cắm C7I 16
Vỏ giắc cắm CHO 16
Ruột giắc cắm CNEM 16 T
Ruột giắc cắm CNEM 16 T
Giá:
Lượt xem:
| Product description | |
| Version | Screw terminal connection |
| Series | CNZ |
| Product type | Bulkhead mounting housing with 2 levers and hood with side cable entry |
| Family | Complete connector |
| Size | Size \"77.27\" |
| N. of poles | 16 poles + ![\"\"](\"https://www.ilme.com/symfony/web/bundles/ilmebackend/img/symbols/terra.png\") |
| Technical data | |
| Current | 16 A |
| Voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Pollution degree | 3 |
| Wire cross-section | 0,50 mm² - 2,50 mm² |
| AWG size | 20 - 14 |
| Material | Metal |
| Contact material | Turned silver plated |
| IP degree of protection | IP66 (and IP69 DIN 40050 - 9) |
| Cable entry | Pg21 |
| Further technical details | |
| Weight | 530,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| General ordering information | |
| EAN13 code | 8015747118422 |
| Packaging Information | |
| Packaging length | 310,00 mm |
| Packaging height | 280,00 mm |
| Packaging width | 325,00 mm |
| Packaging weight | 10,60 kg |
| Packaging volume | 28,21 dm³ |
| Packaging description | Carton box |
| Packaging quantity | 20 Pcs |
| Packaging EAN code | 8015747118507 |
| Sub-packaging weight | 0,53 kg |
| Sub-packaging description | Plastic bag |
| Sub-packaging quantity | 1 Pcs |
